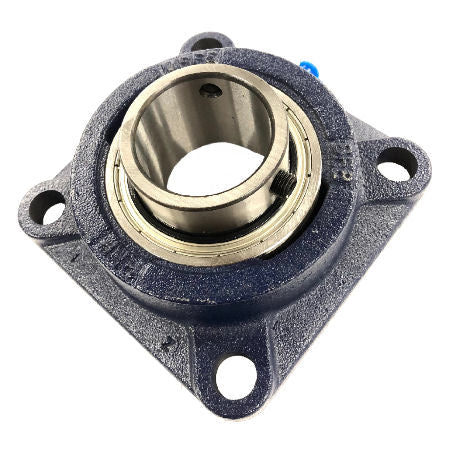

SF1.1/4R RHP 4 Bolt Square Cast Iron Flange Bearing 1 1/4 inch Bore

In stock
RHP SF1.1/4R Self-Lube four bolt square flanged bearing unit for a 1 1/4 inch (31.75 mm) shaft, with a cast iron housing, 82.5 mm bolt centres and grub screw locking.
Regular price £35.32 inc.VAT
£29.43 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor RHP
  • SKU SF1.1/4R-RHP
  • Inside diameter (d) 31.75mm
Support a 1 1/4 inch shaft with the RHP SF1.1/4R, a Self-Lube bearing unit that combines a cast iron square flange housing with a sealed ball bearing insert. Four bolts secure the housing directly to a machine frame or panel. Grub screws in the extended... Read full description ↓ Show less ↑

Support a 1 1/4 inch shaft with the RHP SF1.1/4R, a Self-Lube bearing unit that combines a cast iron square flange housing with a sealed ball bearing insert. Four bolts secure the housing directly to a machine frame or panel.

Grub screws in the extended inner ring secure the bearing to the shaft. The seals help retain grease and keep contaminants out, and a grease nipple allows relubrication during routine maintenance.

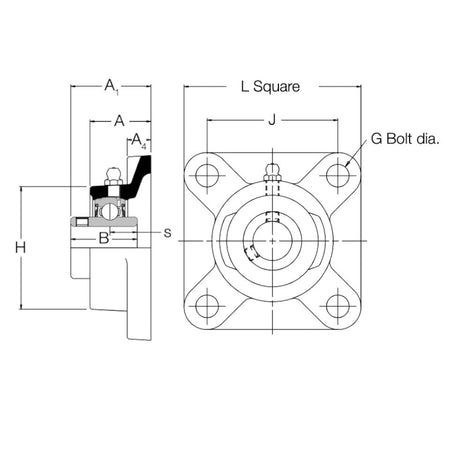

Dimensions and technical details

Manufacturer: RHP (NSK)
Product designation: SF1.1/4R
Unit type: Four bolt square flanged ball bearing unit
Shaft diameter: 1 1/4 inch (31.75 mm)
Housing material: Cast iron
Flange dimensions: 108 × 108 mm
Mounting bolt centres: 82.5 × 82.5 mm
Overall unit depth: 42.21 mm
Nominal mounting bolt diameter: 10 mm
Basic dynamic radial load rating, Cr: 19,500 N
Basic static radial load rating, C0r: 11,300 N
Recommended maximum speed: 5,300 r/min
Shaft locking method: Grub screws
Relubrication: Via grease nipple

Available from Bearing King Ltd for machinery assembly, maintenance and bearing replacement.
