SF15/16 RHP 4 Bolt Square Cast Iron Flange Bearing 15/16 inch Bore

In stock
RHP SF15/16 Self-Lube four bolt square flanged bearing unit for a 15/16 inch (23.8125 mm) shaft, with a cast iron housing, 70 mm bolt centres and grub screw locking.
Regular price £30.10 inc.VAT
£25.08 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor RHP
  • SKU SF15/16-RHP
  • Inside diameter (d) 23.8125mm
Support a 15/16 inch shaft with the RHP SF15/16, a Self-Lube bearing unit that combines a cast iron square flange housing with a sealed ball bearing insert. Four bolts secure the housing directly to a machine frame or panel. Grub screws in the extended inner... Read full description ↓ Show less ↑

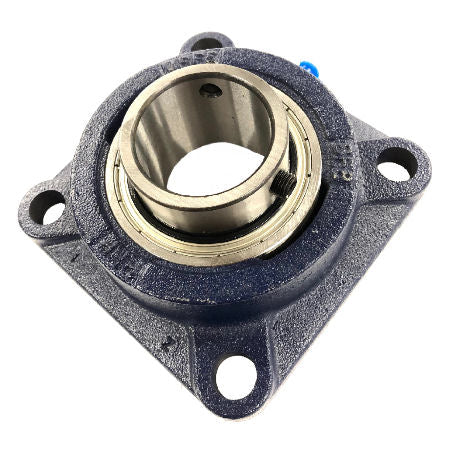

Support a 15/16 inch shaft with the RHP SF15/16, a Self-Lube bearing unit that combines a cast iron square flange housing with a sealed ball bearing insert. Four bolts secure the housing directly to a machine frame or panel.

Grub screws in the extended inner ring secure the bearing to the shaft. The seals help retain grease and keep contaminants out, and a grease nipple allows relubrication during routine maintenance.

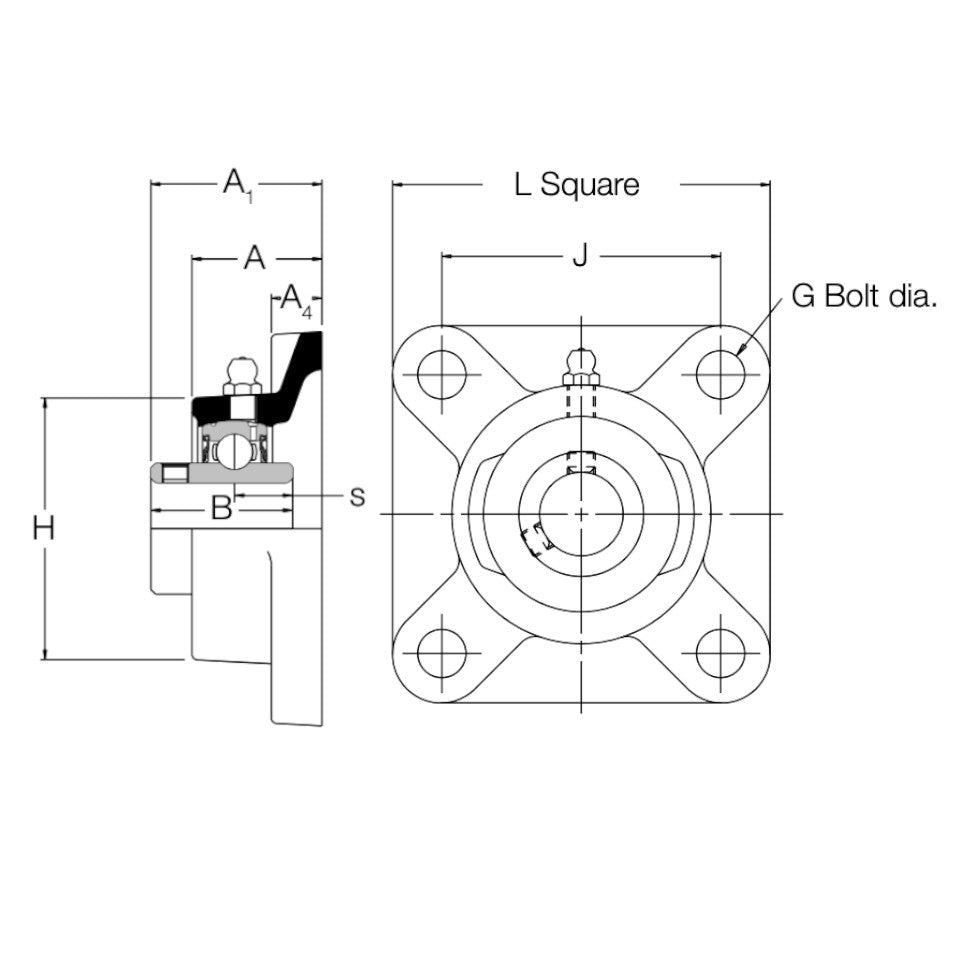

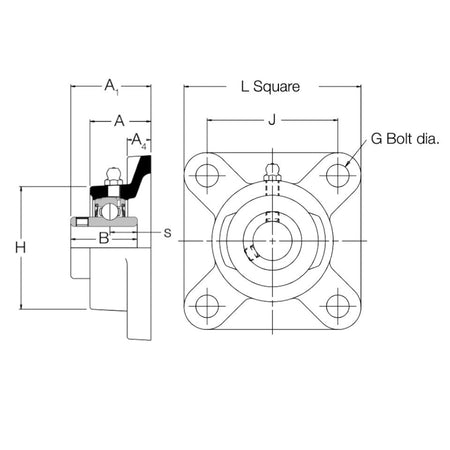

Dimensions and technical details

Manufacturer: RHP (NSK)
Product designation: SF15/16
Unit type: Four bolt square flanged ball bearing unit
Shaft diameter: 15/16 inch (23.8125 mm)
Housing material: Cast iron
Flange dimensions: 95.3 × 95.3 mm
Mounting bolt centres: 70 × 70 mm
Overall unit depth: 38.84 mm
Nominal mounting bolt diameter: 10 mm
Basic dynamic radial load rating, Cr: 14,000 N
Basic static radial load rating, C0r: 7,880 N
Recommended maximum speed: 6,250 r/min
Shaft locking method: Grub screws
Relubrication: Via grease nipple

Available from Bearing King Ltd for machinery assembly, maintenance and bearing replacement.
