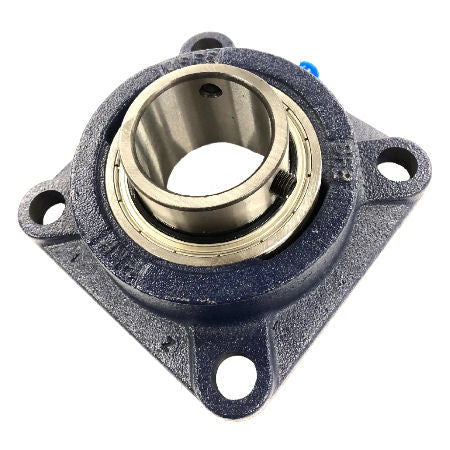

SF2.3/4 RHP 4 Bolt Cast Iron Flange Bearing Unit 2.3/4 inch Bore

In stock
SKU: SF2.3/4-RHP
RHP Normal Duty 4 Bolt Flange Bearing 2.3/4 inch shaft diameter

$258.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor RHP
  • SKU SF2.3/4-RHP
  • Inside diameter (d) 69.85mm
These bearing housings have square flange which can be easily attached to a machine with four bolts. Shaft diameter: 2.3/4 inch RHP designation: SF2.3/4 Basic bearing insert: 1075 Casting group: 12 Dimensions (mm) L: 196.5 H: 158.5 J: 152.40 G: 20 A: 51.3 A1: 80.90... Read full description ↓ Show less ↑
These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 2.3/4 inch
RHP designation: SF2.3/4
Basic bearing insert: 1075
Casting group: 12

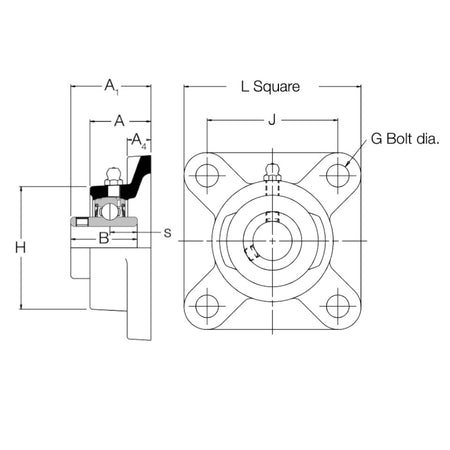

Dimensions (mm)
L: 196.5
H: 158.5
J: 152.40
G: 20
A: 51.3
A1: 80.90
A4: 23.0
B: 77.80
S: 33.34

ISO Load ratings (newtons)
Dynamic: 66000
Static: 49500

Rec max speed: 2300 rev/min

Mass: 8.6 kg
