SF2.7/16 RHP 4 Bolt Square Cast Iron Flange Bearing 2 7/16 inch Bore

In stock

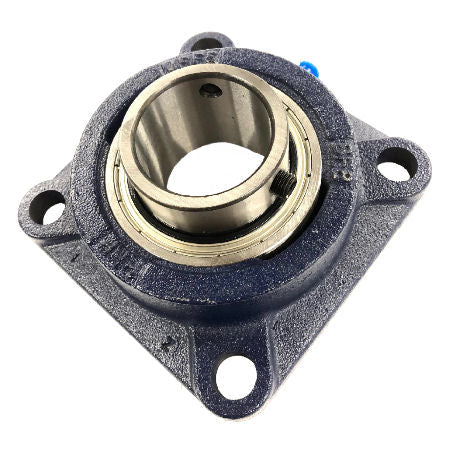

RHP SF2.7/16 Self-Lube four bolt square flanged bearing unit for a 2 7/16 inch (61.9125 mm) shaft, with a cast iron housing, 143 mm bolt centres and grub screw locking.
Regular price £97.62 inc.VAT
£81.35 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor RHP
  • SKU SF2.7/16-RHP
  • Inside diameter (d) 61.9125mm
Support a 2 7/16 inch shaft with the RHP SF2.7/16, a Self-Lube bearing unit that combines a cast iron square flange housing with a sealed ball bearing insert. Four bolts secure the housing directly to a machine frame or panel. Grub screws in the extended... Read full description ↓ Show less ↑

Support a 2 7/16 inch shaft with the RHP SF2.7/16, a Self-Lube bearing unit that combines a cast iron square flange housing with a sealed ball bearing insert. Four bolts secure the housing directly to a machine frame or panel.

Grub screws in the extended inner ring secure the bearing to the shaft. The seals help retain grease and keep contaminants out, and a grease nipple allows relubrication during routine maintenance.

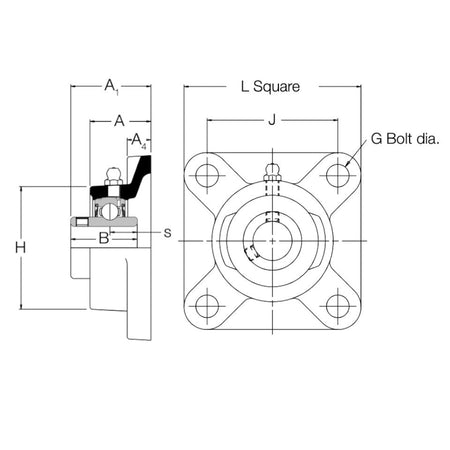

Dimensions and technical details

Manufacturer: RHP (NSK)
Product designation: SF2.7/16
Unit type: Four bolt square flanged ball bearing unit
Shaft diameter: 2 7/16 inch (61.9125 mm)
Housing material: Cast iron
Flange dimensions: 174.5 × 174.5 mm
Mounting bolt centres: 143 × 143 mm
Overall unit depth: 73.69 mm
Nominal mounting bolt diameter: 16 mm
Basic dynamic radial load rating, Cr: 48,000 N
Basic static radial load rating, C0r: 33,000 N
Recommended maximum speed: 2,800 r/min
Shaft locking method: Grub screws
Relubrication: Via grease nipple

Available from Bearing King Ltd for machinery assembly, maintenance and bearing replacement.
