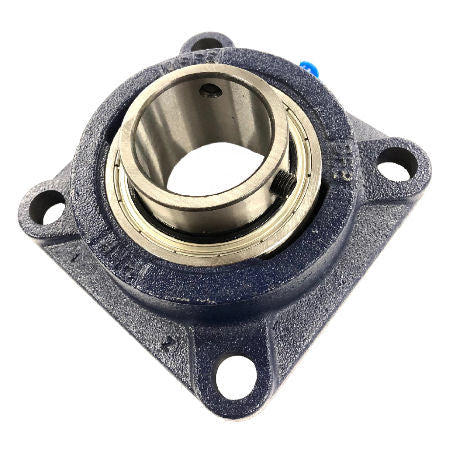

SF3 4 Bolt Cast Iron Flange Bearing Unit 3 inch Bore

In stock
SKU: SF3-RHP
RHP Normal Duty 4 Bolt Flange Bearing 3 inch shaft diameter
Regular price From £224.86
£187.38 exc.VAT

Product details

  • Vendor RHP
  • SKU SF3-RHP
  • Inside diameter (d) 76.2mm
These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 3 inch
RHP designation: SF3
Basic bearing insert: 1075
Casting group: 12

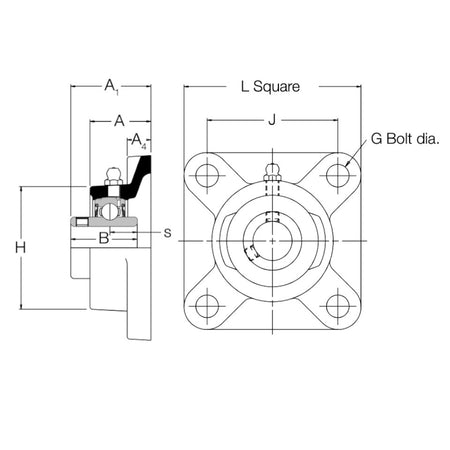

Dimensions (mm)
L: 196.5
H: 158.5
J: 152.40
G: 20
A: 51.3
A1: 80.90
A4: 23.0
B: 77.80
S: 33.34

ISO Load ratings (newtons)
Dynamic: 66000
Static: 49500

Rec max speed: 2300 rev/min

Mass: 8.6 kg
