SF65R RHP 4 Bolt Square Cast Iron Flange Bearing 65mm Bore

In stock

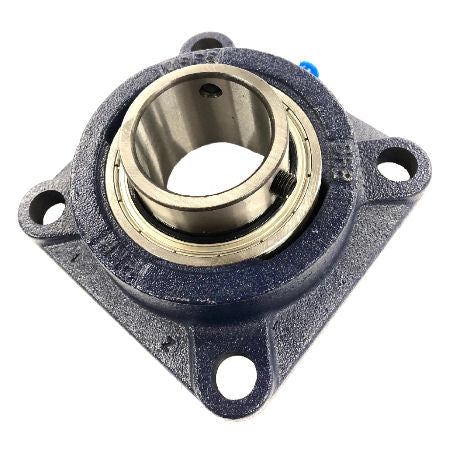

RHP SF65R Self-Lube four bolt square flanged bearing unit for a 65 mm shaft, with a cast iron housing, 143 mm bolt centres and grub screw locking.
Regular price £149.29 inc.VAT
£124.41 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor RHP
  • SKU SF65R-RHP
  • Inside diameter (d) 65mm
Support a 65 mm shaft with the RHP SF65R, a Self-Lube bearing unit that combines a cast iron square flange housing with a sealed ball bearing insert. Four bolts secure the housing directly to a machine frame or panel. Grub screws in the extended inner... Read full description ↓ Show less ↑

Support a 65 mm shaft with the RHP SF65R, a Self-Lube bearing unit that combines a cast iron square flange housing with a sealed ball bearing insert. Four bolts secure the housing directly to a machine frame or panel.

Grub screws in the extended inner ring secure the bearing to the shaft. The seals help retain grease and keep contaminants out, and a grease nipple allows relubrication during routine maintenance.

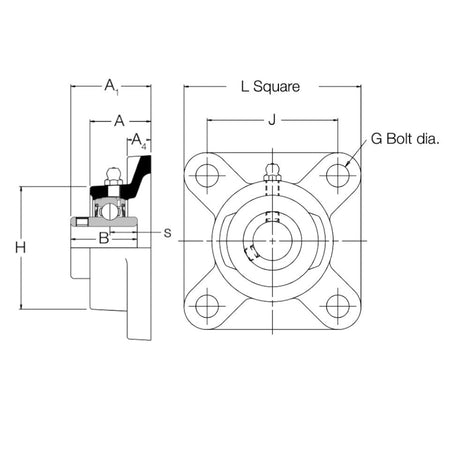

Dimensions and technical details

Manufacturer: RHP (NSK)
Product designation: SF65R
Unit type: Four bolt square flanged ball bearing unit
Shaft diameter: 65 mm
Housing material: Cast iron
Flange dimensions: 174.5 × 174.5 mm
Mounting bolt centres: 143 × 143 mm
Overall unit depth: 73.69 mm
Nominal mounting bolt diameter: 16 mm
Basic dynamic radial load rating, Cr: 57,500 N
Basic static radial load rating, C0r: 40,000 N
Recommended maximum speed: 2,600 r/min
Shaft locking method: Grub screws
Relubrication: Via grease nipple

Available from Bearing King Ltd for machinery assembly, maintenance and bearing replacement.
