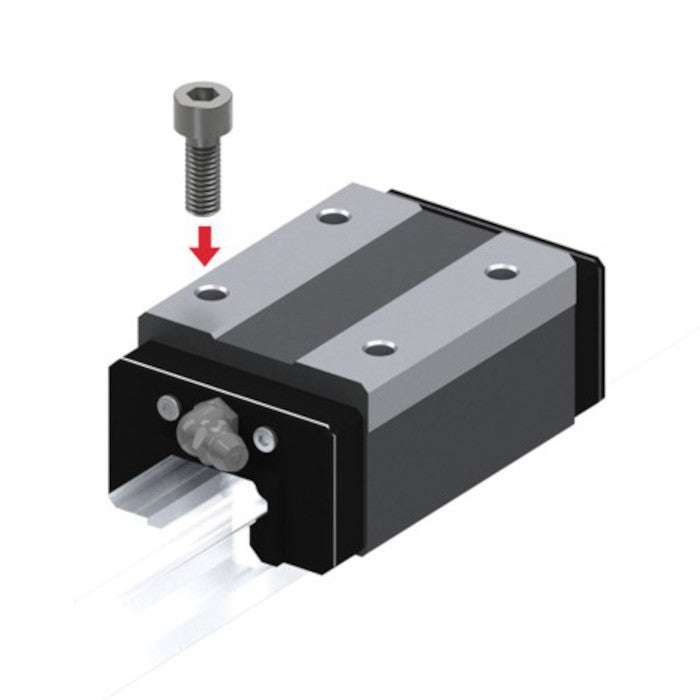

A global standard size LM Guide in which each row of balls is placed at a contact angle of 45 ° so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations.
The LM block has the same cross-sectional shape as model SHS-V, but has a longer overall LM block length (L) and a greater rated load.
Product characteristics
Category:Carriages
Material:Steel, plastic
Seal:End seals, sealing strips and inner seals
Temperature range:-20 to +80 °C
Tolerance class:THK normal class
Design:Block carriage
Version:Small and long design
Preload:Normal preload
Type of rolling elements:Balls
Ball-/Roller rows:Four-row
Ball chain:With ball chain
Lubrication & Maintenance:Can be relubricated (via the lubrication nipple)
Series:20 series
Weight:0,350 kg
ProductID:
Country of origin:France
Customs tariff number:8482 1090
Outer dimensions
Height M: 30mm
Width W: 44mm
Length L: 79mm
LM block dimensions
B: 32mm
C: 36mm
Mounting Hole Sxl: M5X5
L1: 59mm
T: 8mm
K: 25.4mm
N: 6.5mm
E: 12mm
Grease Nipple: B-M6F
Pilot hole for side nipple
e0: 4.3mm
f0: 5.3mm
D0: 3mm
H3: 4.6mm
LM rail dimensions
W1 +0.05: 20mm
W2: 12mm
M1: 16.5mm
F: 60mm
d1xd2xh: 6x9.5x8.5mm
Length Max: 3000mm
Basic load rating
C: 22.3kN
C0: 38.4kN
Mass
LM block kg: 0.35
LM rail kg/m: 2.3
