A global standard size LM Guide in which each row of balls is placed at a contact angle of 45 ° so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations.
The flange of the LM block has tapped holes. Can be mounted from the top or the bottom. Used in places where the table cannot have through holes for mounting bolts.
Product characteristics
Category:Carriages
Material:Steel, plastic
Seal:End seals, sealing strips and inner seals
Temperature range:-20 to +80 °C
Tolerance class:THK normal class
Design:Flange carriage
Version:Standard version
Preload:Normal preload
Type of rolling elements:Balls
Ball-/Roller rows:Four-row
Ball chain:With ball chain
Lubrication & Maintenance:Can be relubricated (via the lubrication nipple)
Series:25 series
Weight:0,890 kg
ProductID:
Country of origin:Japan
Customs tariff number:8482 1090

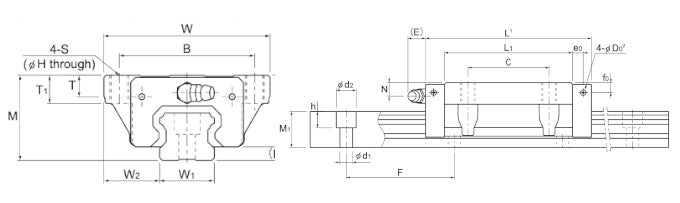

Outer dimensions
Height M: 36mm
Width W: 70mm
Length L: 109mm
LM block dimensions
B: 57mm
C: 45mm
Mounting Hole S: M8
H: 6.8mm
L1: 88mm
T: 9.1mm
T1: 12mm
K: 30.2mm
N: 7.5mm
E: 12mm
Grease Nipple: B-M6F
LM rail dimensions
W1 +0.05: 23mm
W2: 23.5mm
M1: 20mm
F: 60mm
d1xd2xh: 7x11x9mm
Length Max: 3000mm
Basic load rating
C: 36.8kN
C0: 64.7kN
Mass
LM block kg: 0.89
LM rail kg/m: 3.2
