A global standard-size LM Guide in which each row of balls is positioned at a contact angle of 45°, allowing uniform load ratings in the radial, reverse-radial and lateral directions. This enables the guide to be used in all mounting orientations.
The SHS-LV has the same cross-sectional shape as the SHS-V but features a longer block, providing increased load capacity. Its compact width makes it suitable for applications where table-width space is limited.
Product characteristics
Category: Carriages
Material: Steel, plastic
Seal: End seals, sealing strips and inner seals
Temperature range: -20 to +80°C
Tolerance class: THK normal class
Design: Block carriage
Version: Long version
Preload: Normal preload
Manufacturer: THK
Type of rolling elements: Balls
Ball-/roller rows: Four-row
Ball chain: With ball chain
Lubrication and maintenance: Can be relubricated via the lubrication nipple
Series: 35 series
Weight: 1.840 kg
Country of origin: Japan
Customs tariff number: 8482 1090

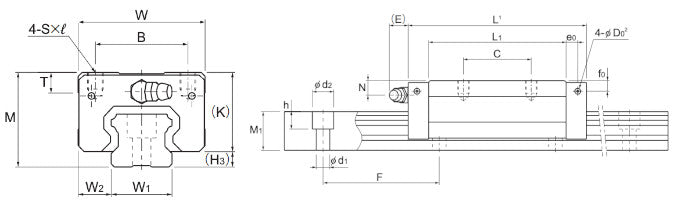

Outer dimensions
Height M: 48 mm
Width W: 70 mm
Length L: 152 mm
LM block dimensions
B: 50 mm
C: 72 mm
Mounting hole S × ?: M8 × 10 mm
L1: 123 mm
T: 14.7 mm
K: 40.5 mm
N: 8 mm
E: 12 mm
Grease nipple: B-M6F
Pilot hole for side nipple
e0: 6.5 mm
f0: 5.5 mm
D0: 5.2 mm
H3: 7.5 mm
LM rail dimensions
W1: 34 mm
W2: 18 mm
M1: 26 mm
F: 80 mm
d1 × d2 × h: 9 × 14 × 12 mm
Maximum length: 3000 mm
Basic load rating
Dynamic load rating C: 72.9 kN
Static load rating C0: 127 kN
Mass
LM block: 1.84 kg
LM rail: 6.2 kg/m
