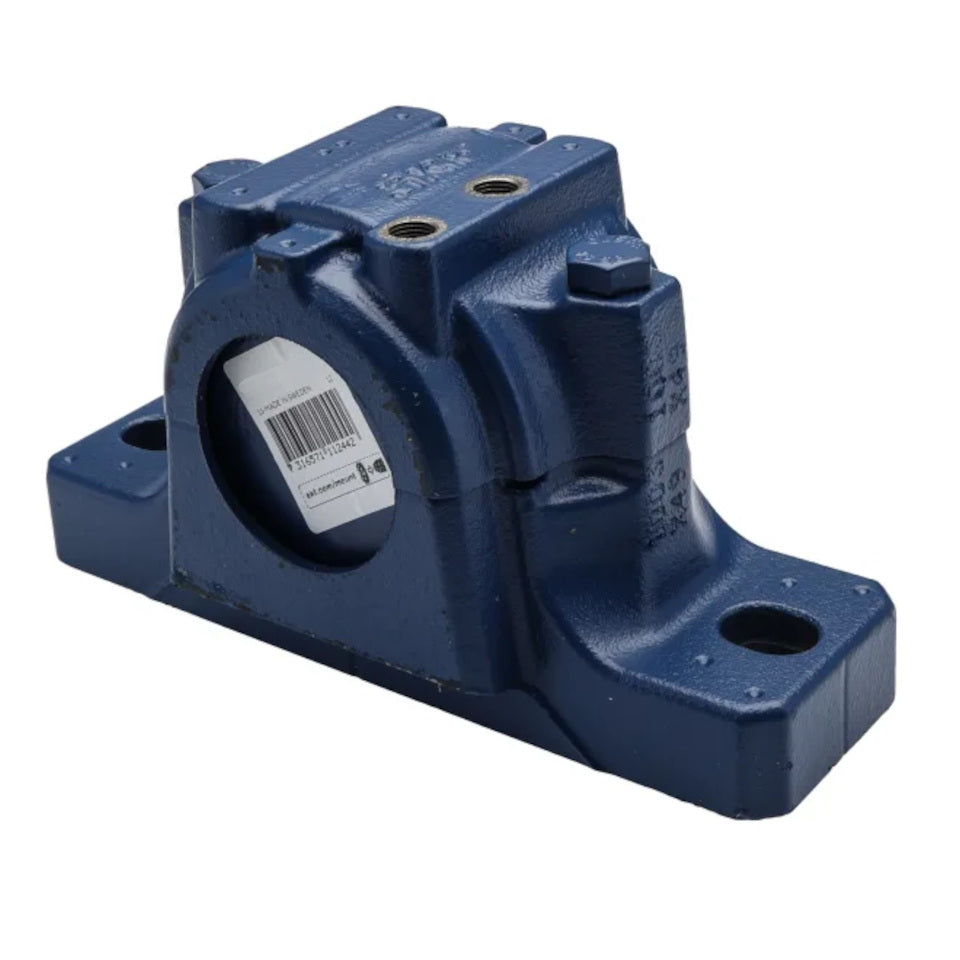

The SKF SNL205 is a cast iron split plummer block housing designed to support compatible self-aligning ball bearings, spherical roller bearings and CARB toroidal roller bearings. Its rigid construction provides bearing support for industrial machinery, while the removable housing cap simplifies installation, inspection and maintenance.
The housing features a 52 mm bearing seat diameter, a 25 mm bearing seat width and a 40 mm centre height. Two elongated mounting holes, positioned at 130 mm centres, allow adjustment when securing the housing to its supporting surface.
Designed for grease lubrication, the SNL205 can be configured for through-shaft or shaft-end installations using suitable sealing accessories and an end cover. SKF lists labyrinth and heavy-duty taconite seal options, allowing the sealing arrangement to be selected for the operating environment.
The 52 mm dimension refers to the outside diameter of the bearing accommodated by the housing. The compatible bearings listed below have a 25 mm bore; the shaft dimensions at the seals must also suit the selected sealing arrangement.
Technical specifications
Brand: SKF
Product designation: SNL 205
Housing type: Split plummer block housing
Housing construction: Two-piece, with removable cap
Housing material: Cast iron
Bearing seat diameter, Da: 52 mm
Bearing seat diameter tolerance: G7
Bearing seat width, Ca: 25 mm
Centre height, H1: 40 mm
Overall length, L: 165 mm
Overall height, H: 74 mm
Housing width, A: 67 mm
Foot width, A1: 46 mm
Foot height, H2: 19 mm

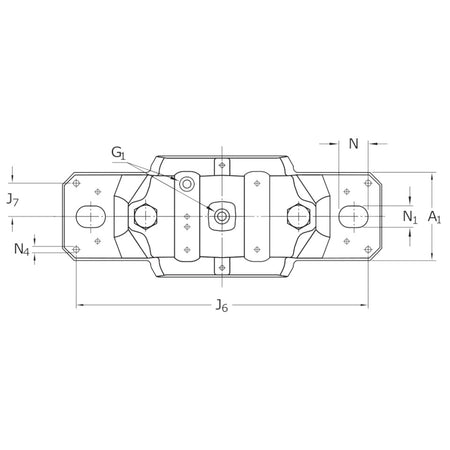

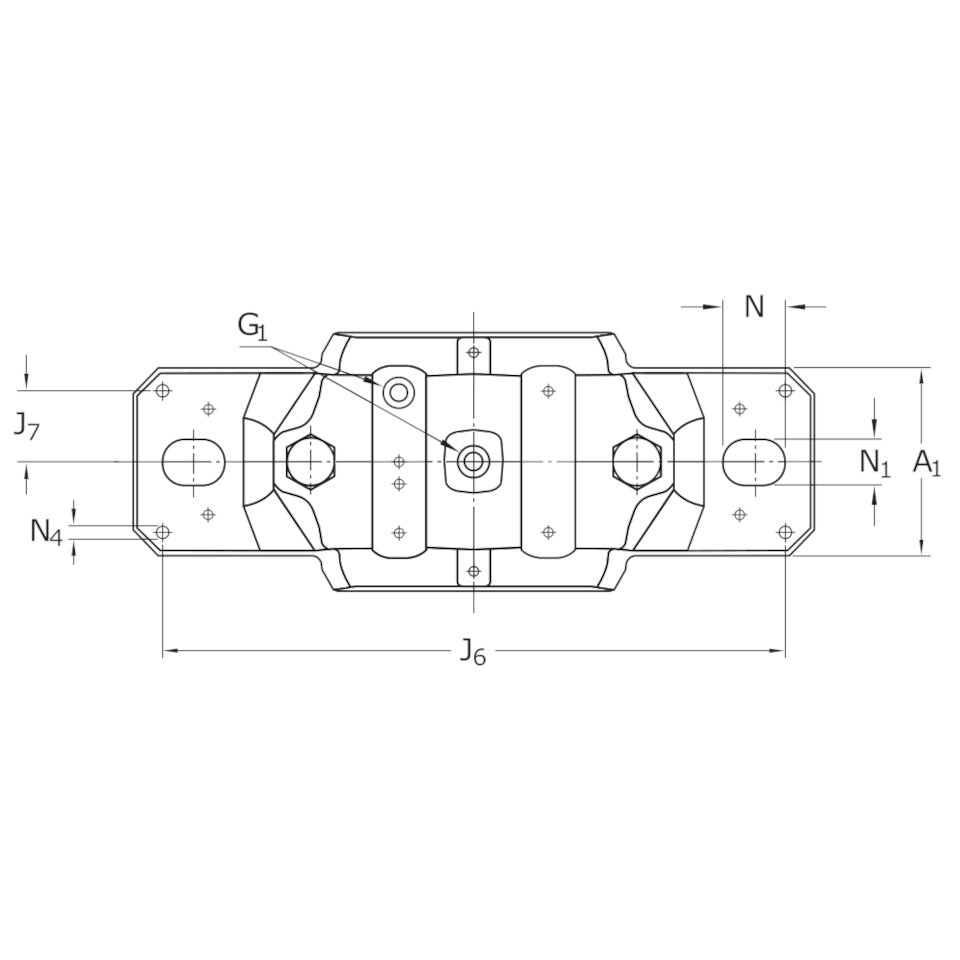

Attachment bolt centres, J: 130 mm
Number of attachment bolt holes: 2
Attachment bolt hole length, N: 20 mm
Attachment bolt hole width, N1: 15 mm
Recommended attachment bolt size: M12
Lubrication: Grease
Housing seals: Supplied without seals
Mounting arrangements: Through shaft or shaft end
Compatible bearings and locating rings
SKF 1205 ETN9 self-aligning ball bearing: Two FRB 5/52 locating rings
SKF 2205 ETN9 self-aligning ball bearing: Two FRB 3.5/52 locating rings
SKF 22205 E spherical roller bearing: Two FRB 3.5/52 locating rings
SKF BS2-2205-2CS sealed spherical roller bearing: Two FRB 1/52 locating rings
SKF C 2205 TN9 CARB toroidal roller bearing: Two FRB 3.5/52 locating rings
The locating ring combinations above secure the bearing outer ring axially in the housing. Ring requirements depend on whether the application uses a locating or non-locating bearing arrangement.
Compatible sealing accessories
Labyrinth seal option: SKF TSN 205 S
Heavy-duty taconite seal option: SKF TSN 205 ND
Housing width including labyrinth seals: 90 mm
Housing width including taconite seals: 140 mm
End cover for shaft-end arrangements: SKF ASNH 505-605
Bearings, seals, locating rings and end covers are selected separately to suit the installation. The stated 67 mm housing width excludes the additional width of the labyrinth or taconite seals.
Available from Bearing King Ltd for industrial maintenance, bearing replacement and machinery assembly.
