SNU517 Budget Brand Split Plummer Block Housing for 75mm Shaft

In stock
SKU: SNU517-BUDGET
Split plummer block housing for bearings with adapter sleeve for 75mm shaft

$76.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Budget
  • Vendor BKL Brand
  • SKU SNU517-BUDGET
  • Inside diameter (d) 75mm
Budget Brand split plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made. Shaft... Read full description ↓ Show less ↑
Budget Brand split plummer block housings enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling costeffective bearing arrangements to be made.

Shaft Diameter: 75mm

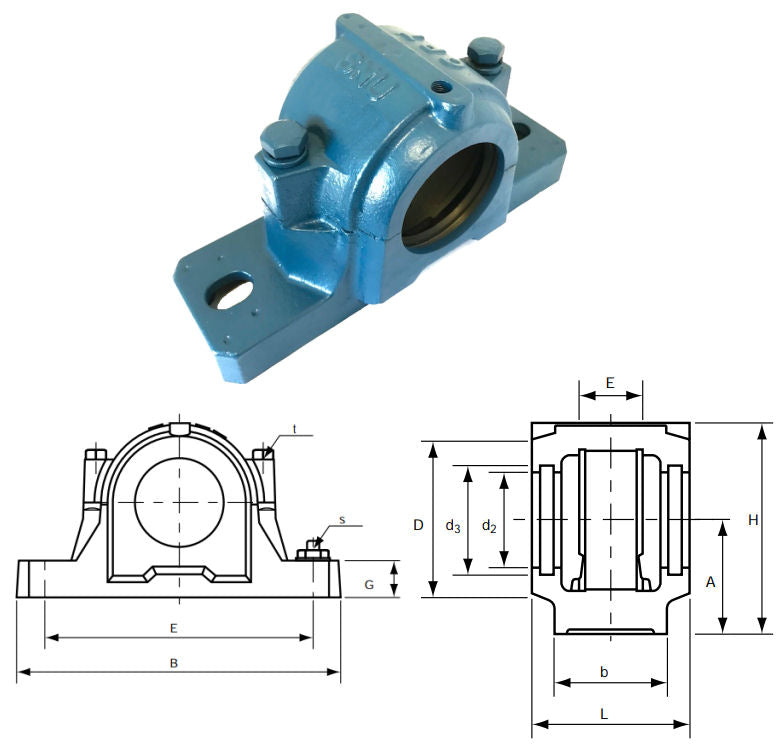

Plummer Block Housing Dimensions
D: 150mm
B: 320mm
b: 90mm
G: 32mm
F: 61mm
A: 95mm
L: 125mm
H: 180mm
E: 260mm
d2: 97.5mm
d3: 106.0mm
f: 5mm
S: M20
t: M16

Weight: 9.8kg
