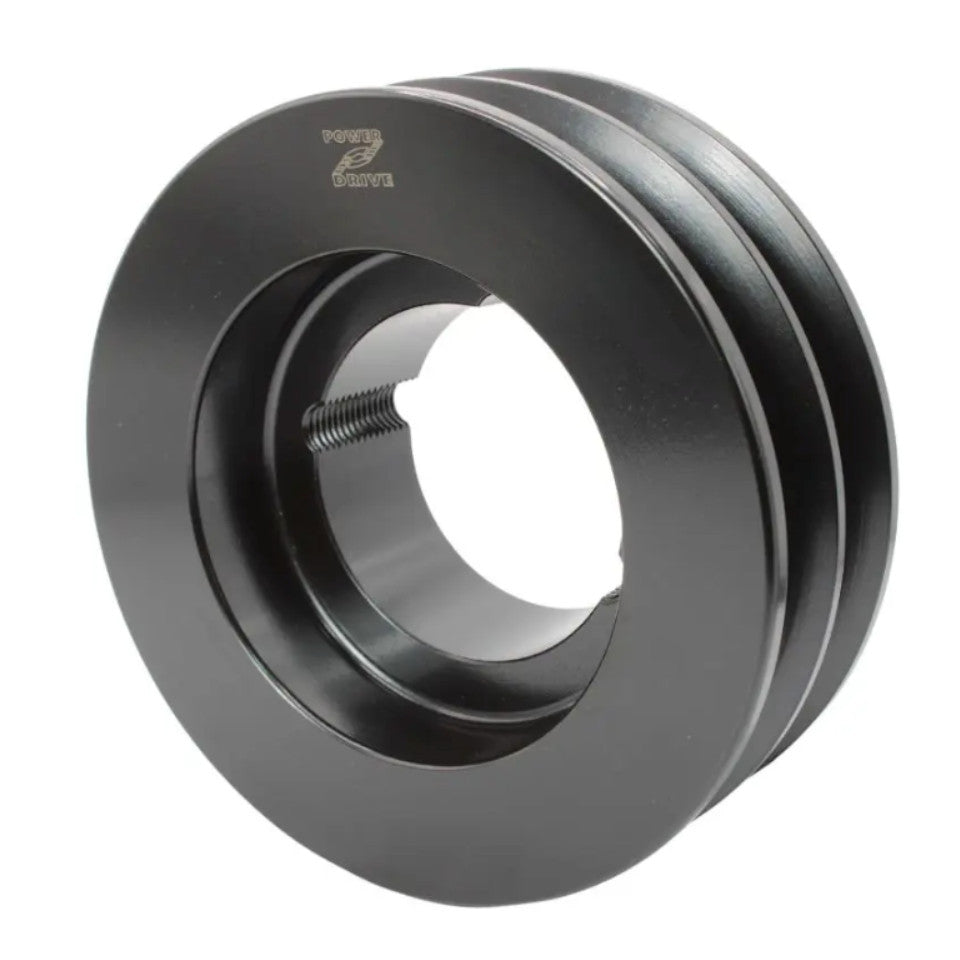

SPA067-2 67mm Pitch Diameter 2 Groove Tapered Bush V Pulley

In stock
SKU: SPA67-2
SPA section 2 groove taperlock V & wedge pulley suitable for A section, AX section, SPA section, XPA section and A section Nutlink V belts and wedge belts
Regular price From £7.85
£6.54 exc.VAT

Product details

  • Vendor Power Drive
  • SKU SPA67-2
  • Outside diameter (D) 67mm
V pulleys are manufactured from fine grain grey cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and
groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184.

Benefits
Pulley groove specification conforms to ISO4183.
Suitable for both classical and wedge belts.
Larger pulleys, weighing in excess of 100kg are dynamically balanced.

Product Details
Pitch diameter B: 67mm
Outside diameter C: 73.2
Number of grooves: 2
Bush size: 1108
Outer hub diameter E: -
Inner bore diameter max A: 28mm
Bush seat length G: 22mm
Pulley type: -
Inner recess diameter D: 37mm
Inner recess length H: 13mm
Mass Kg: 0.47
Overall sheave depth F: 35mm
