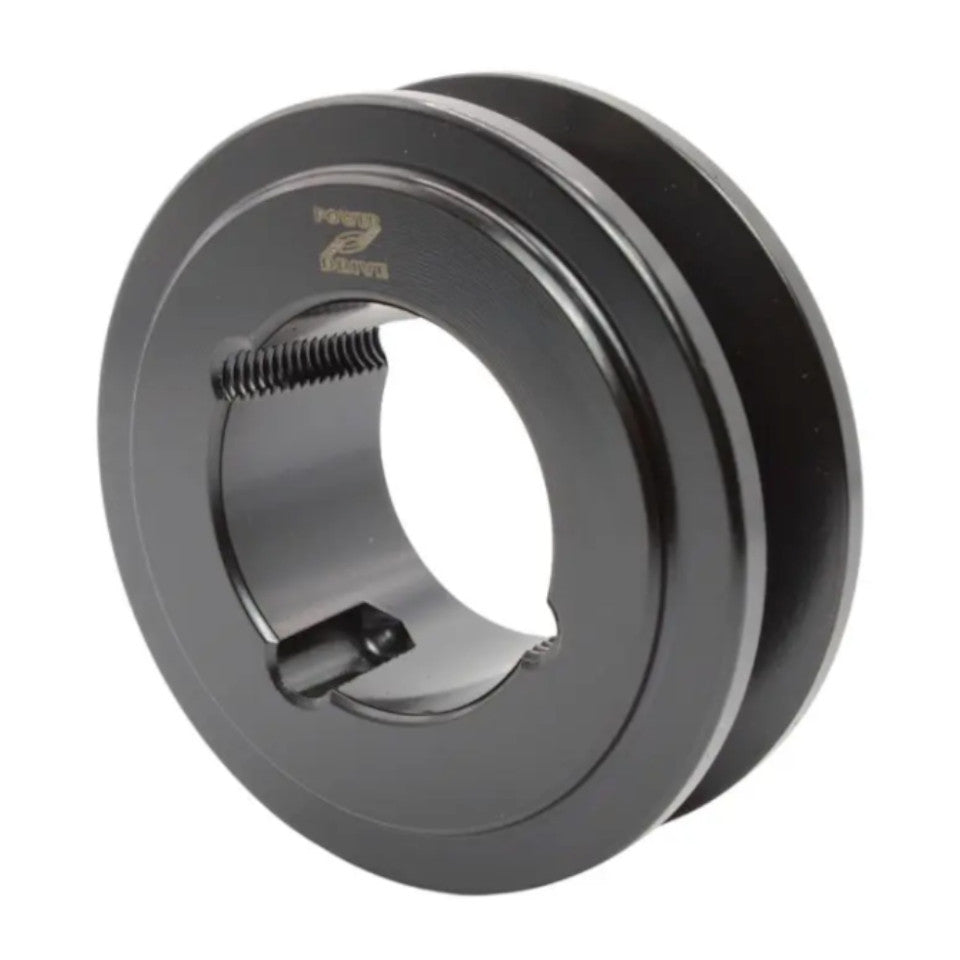

SPA071-1 71mm Pitch Diameter 1 Groove Tapered Bush V Pulley
SPA section 1 groove taperlock V & wedge pulley suitable for A section, AX section, SPA section, XPA section and A section Nutlink V belts and wedge belts
Regular price
£7.06
inc.VAT
£5.88 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
V pulleys are manufactured from fine grain grey cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and
groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184.
Benefits
Pulley groove specification conforms to ISO4183.
Suitable for both classical and wedge belts.
Larger pulleys, weighing in excess of 100kg are dynamically balanced.
Product Details
Pitch diameter B: 71mm
Outside diameter C: 77.2mm
Number of grooves: 1
Bush size: 1108
Outer hub diameter E: 60mm
Inner bore diameter max A: 28mm
Bush seat length G: 22mm
Pulley type: 1
Inner recess diameter D: -
Inner recess length H: -
Mass Kg: 0.37
Overall sheave depth F: 20mm
