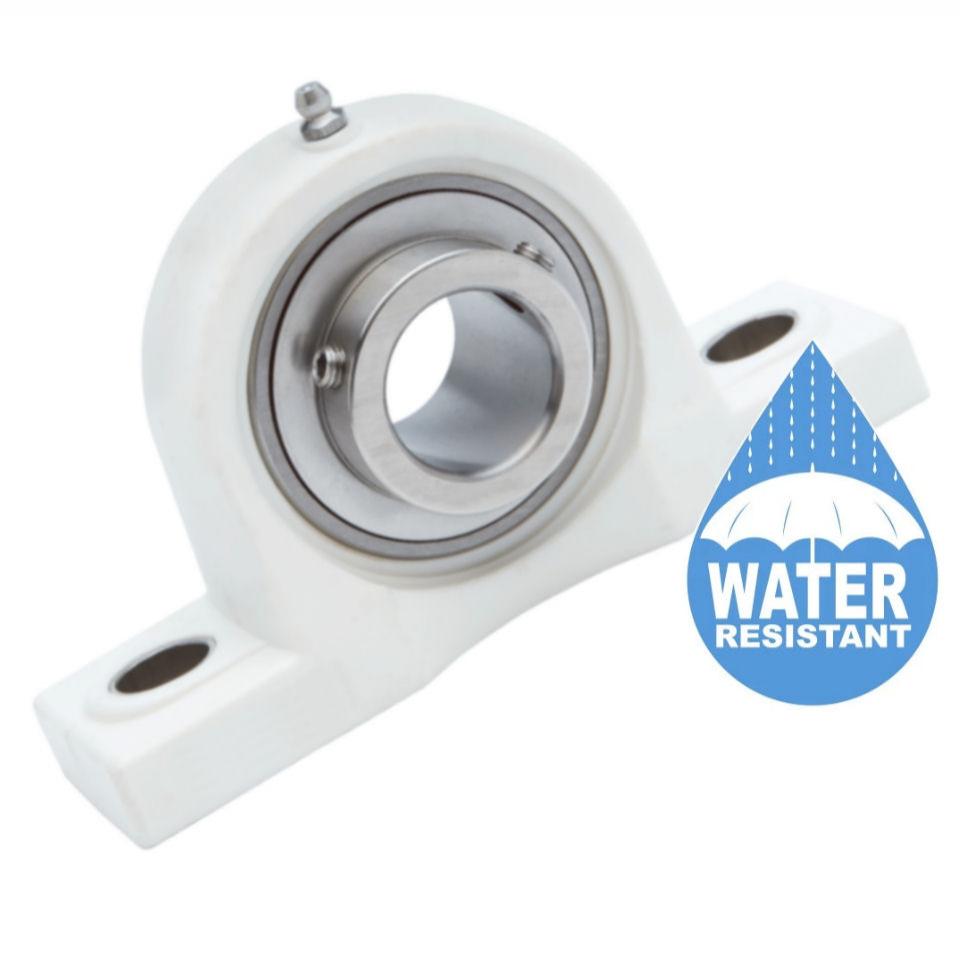

Thermoplastic self-aligning bearing units with stainless steel bearing-inserts are notably used in the pharmaceutical and agricultural industries, these bearing units feature a smooth surface preventing dust, moisture or bacteria retention. Grease used is odourless, tasteless grease harmless to food products, our bearings provide excellent resistance to chemical agents acids, bases, organic solvents and high temperatures.

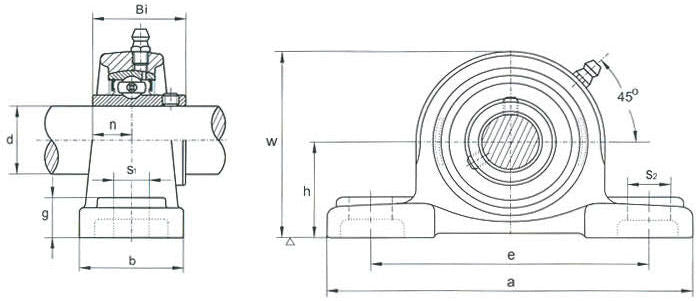

Product Dimensions
Shaft Size: 3/4 inch - 19.05mm
h: 33.3mm
a: 127.0mm
e: 95mm
b: 38mm
S1: 11mm
S2: 14mm
g: 14.2mm
w: 65.0mm
Bi: 31.0mm
n: 12.7mm
Bolt used: M10
Load Rating Dynamic: 10000kgf
Load Rating Static: 6300kgf
Weight: 0.12kg
Housing Reference Used: PPL204
Insert Reference Used: SUC204
