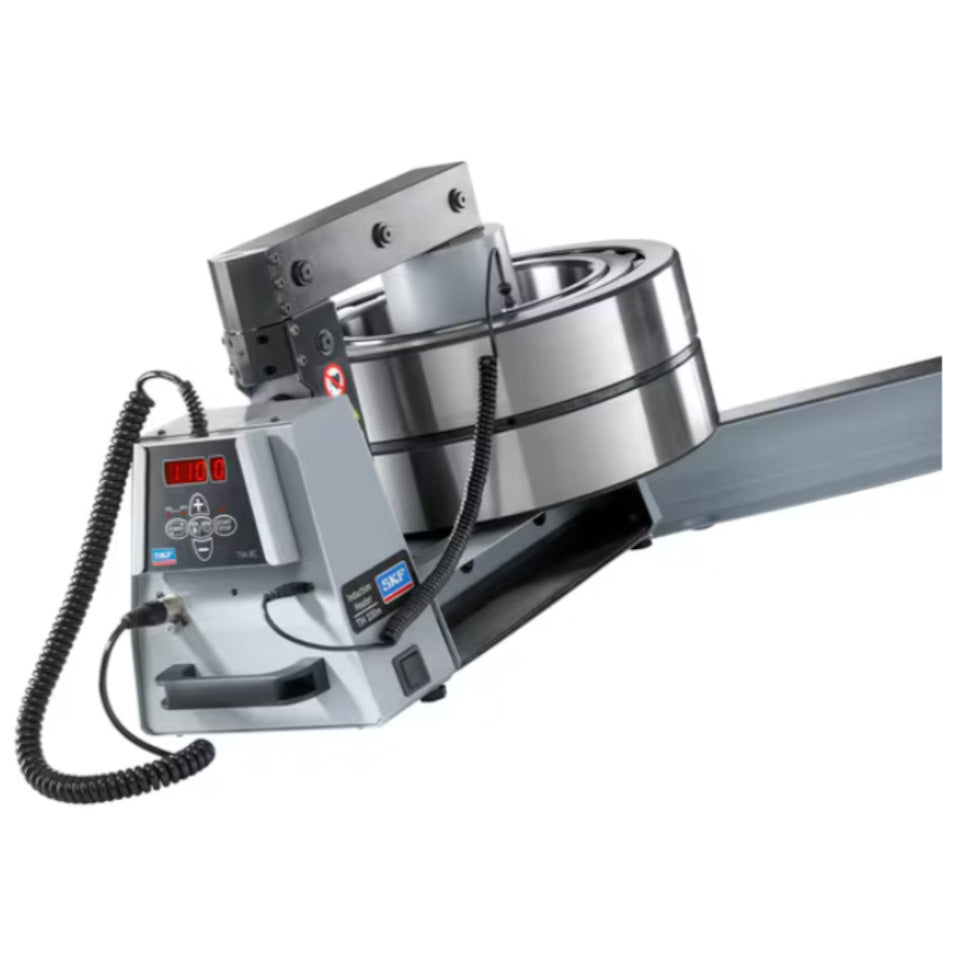

SKF medium-sized induction heater designed for the safe and efficient hot mounting of bearings weighing up to 120 kg.
The TIH 100M/MV uses low-frequency induction heating to expand bearing inner rings evenly, allowing them to be fitted without excessive mounting force. Automatic temperature control, time-controlled heating and demagnetisation provide a controlled mounting process while helping protect the bearing from overheating and contamination.

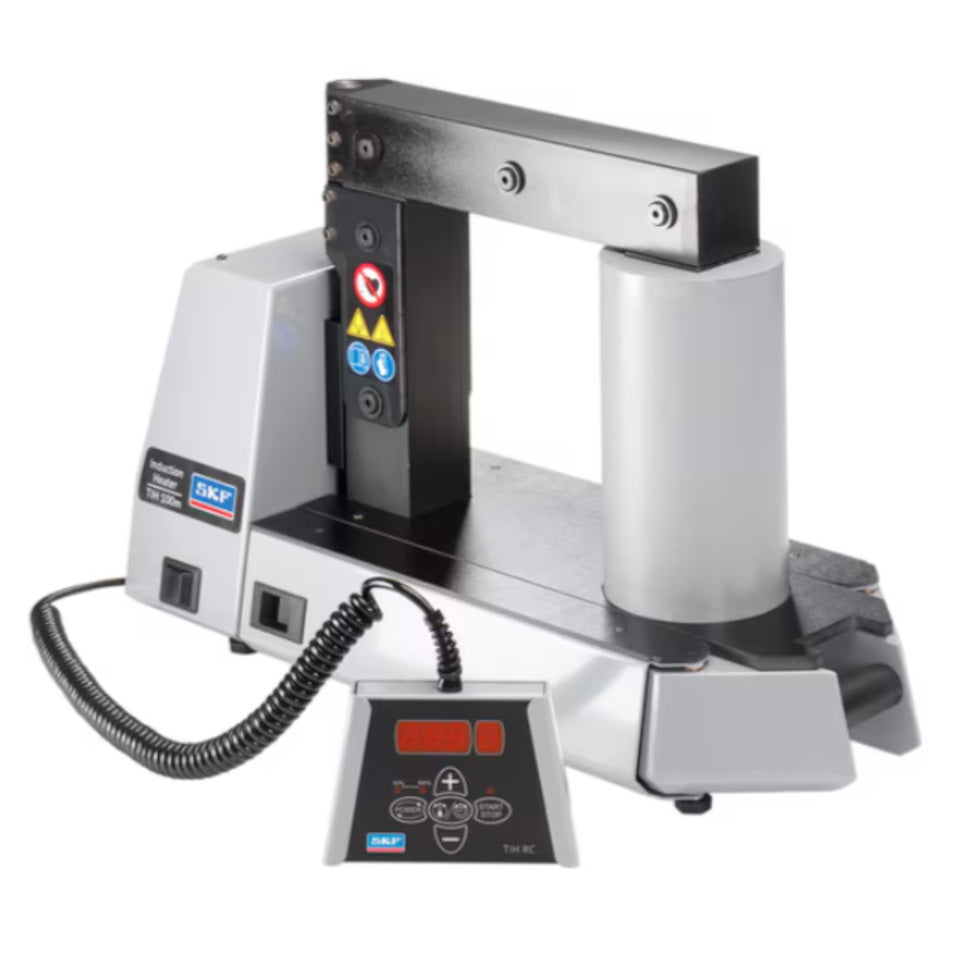

Its compact workshop-bench design incorporates folding bearing-support arms, a swivel yoke and integrated storage for the smaller yokes. The heater can also be transported for on-site maintenance using the optional SKF TIH T1 trolley.
Product characteristics
Category: Induction bearing heaters
Manufacturer: SKF
Product designation: TIH 100M/MV
Series: TIH 100m
Heater size: Medium
Heater type: Workshop-bench induction heater
Heating method: Low-frequency induction
Application: Hot mounting of bearings and other ring-shaped components
Suitable for mounting: Yes
Suitable for dismounting: No
Maximum bearing weight: 120 kg
Maximum solid workpiece weight: 120 kg
Maximum non-bearing workpiece weight: 60 kg
Workpiece bore range: 20–400 mm
Coil diameter: 110 mm
Heating controls
Control modes: Temperature and time
Temperature range: 0 to 250°C
Equivalent temperature range: 32 to 482°F
Time-control range: 0–60 minutes
Temperature probe: Magnetic K-type probe
Temperature-hold function: Automatic
Demagnetisation: Automatic, less than 2 A/cm
Power settings: Two
The automatic temperature-hold function keeps the bearing warm after the heating cycle, while automatic demagnetisation reduces the risk of the component attracting metallic particles.
Electrical data
Supply voltage: 400–460 V
Frequency: 50–60 Hz
Maximum power consumption: 4.0–4.6 kVA
Voltage classification: MV
Dimensions and weight
Dimensions W × D × H: 570 × 230 × 350 mm
Operating area W × H: 155 × 205 mm
Total weight including yokes: 42 kg
Yokes supplied
Large swivel yoke: 56 × 56 × 296 mm
Medium yoke: 28 × 28 × 296 mm
Small yoke: 14 × 14 × 296 mm
The supplied yokes accommodate workpieces with minimum bore diameters of approximately 65, 40 and 20 mm. Optional yokes are available for minimum bore diameters of 30 and 60 mm.
Features and benefits
- High heating capacity for bearings weighing up to 120 kg
- Capable of heating a 97 kg bearing to 110°C in approximately 20 minutes
- External induction coil supports shorter heating times and efficient energy use
- Automatic temperature or time-controlled operation
- Magnetic temperature probe helps prevent bearing overheating
- Automatic demagnetisation reduces contamination risk
- Two power settings allow smaller bearings to be heated safely

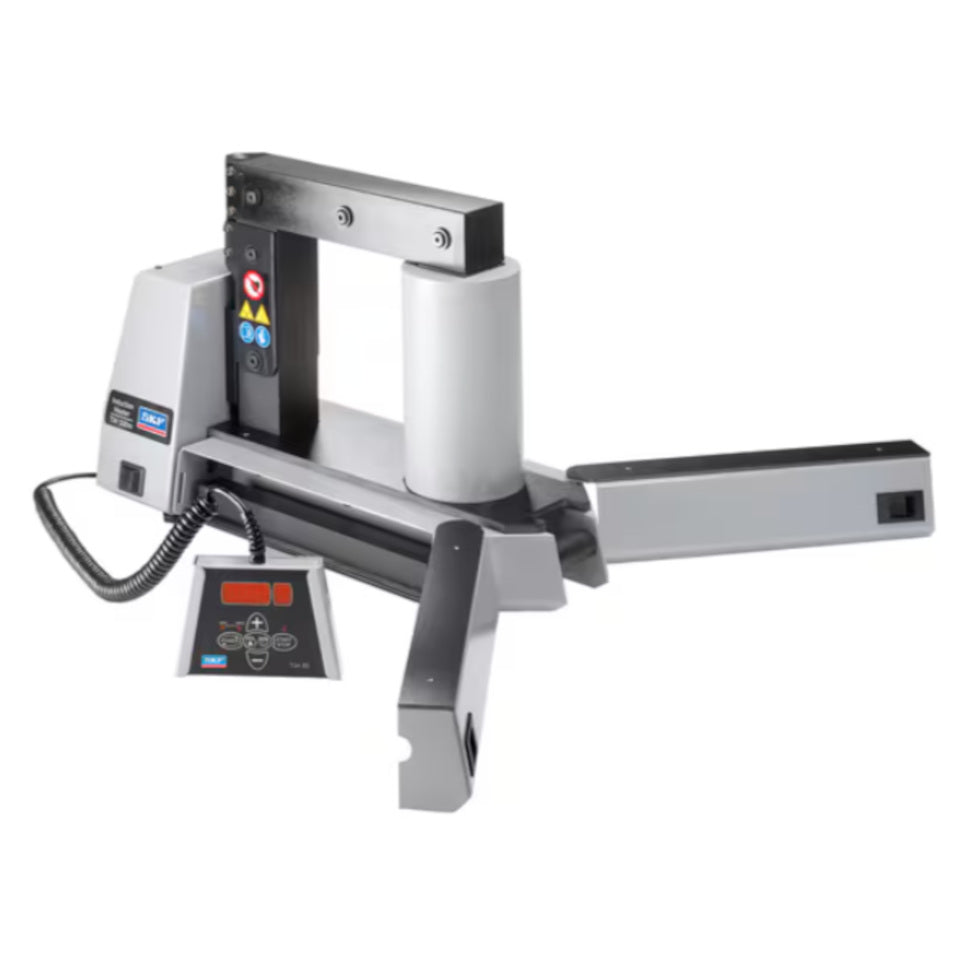

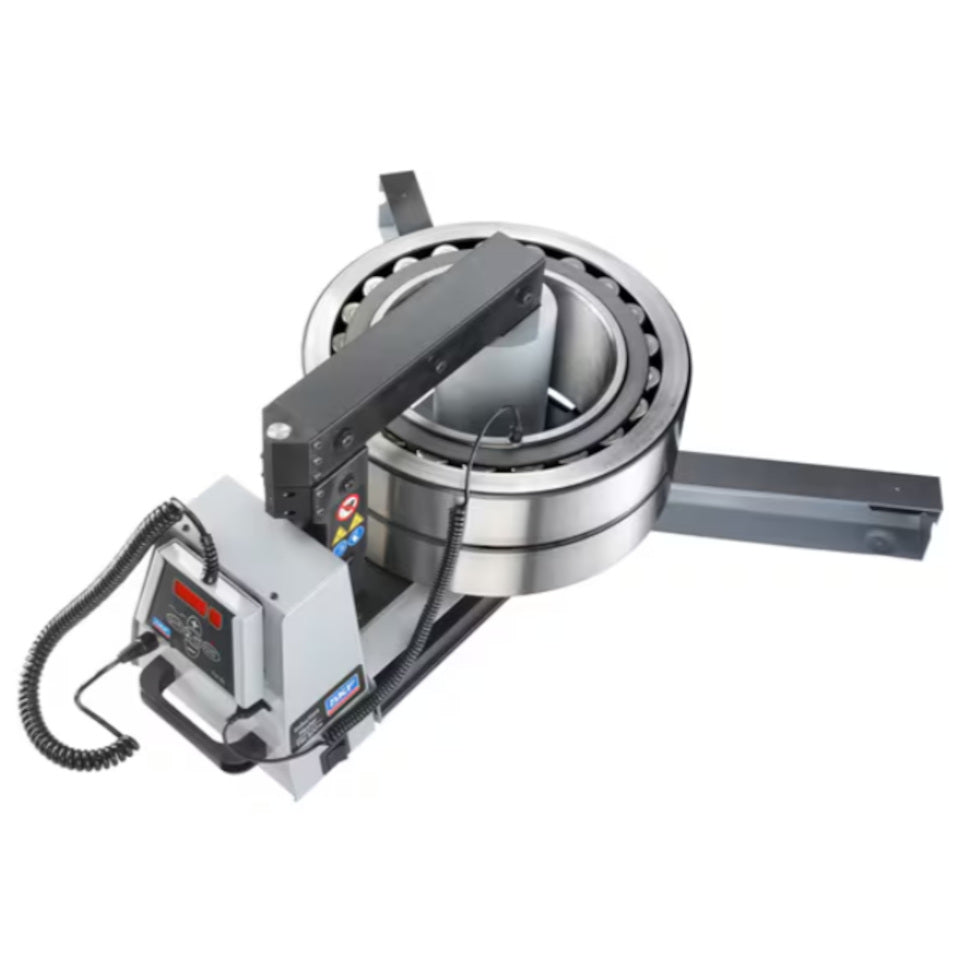

- Folding support arms accommodate larger-diameter bearings
- Swivel yoke assists with loading and unloading
- Integrated storage protects the smaller yokes from loss or damage
- Built-in carrying handle supports workshop portability
- Compatible with the optional SKF TIH T1 heater trolley
The SKF TIH 100M/MV is a versatile solution for workshops and industrial maintenance teams requiring fast, repeatable and controlled heating of medium-to-large bearings.
