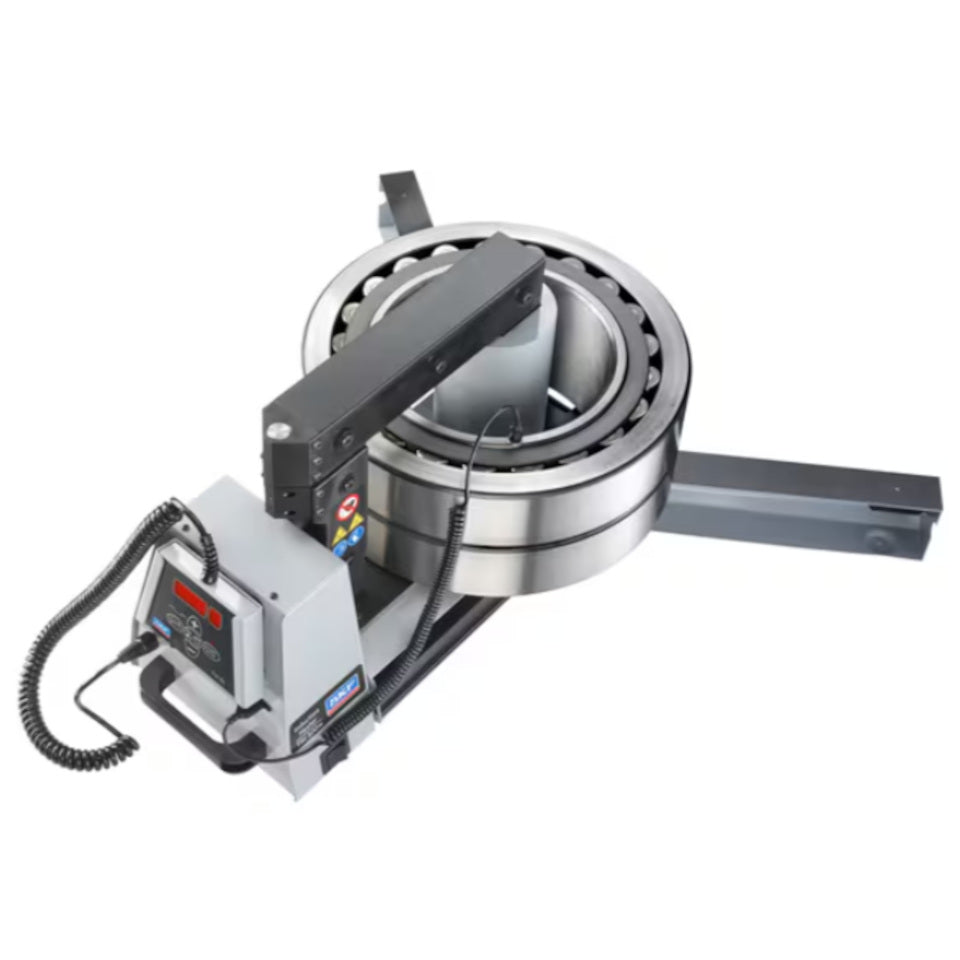

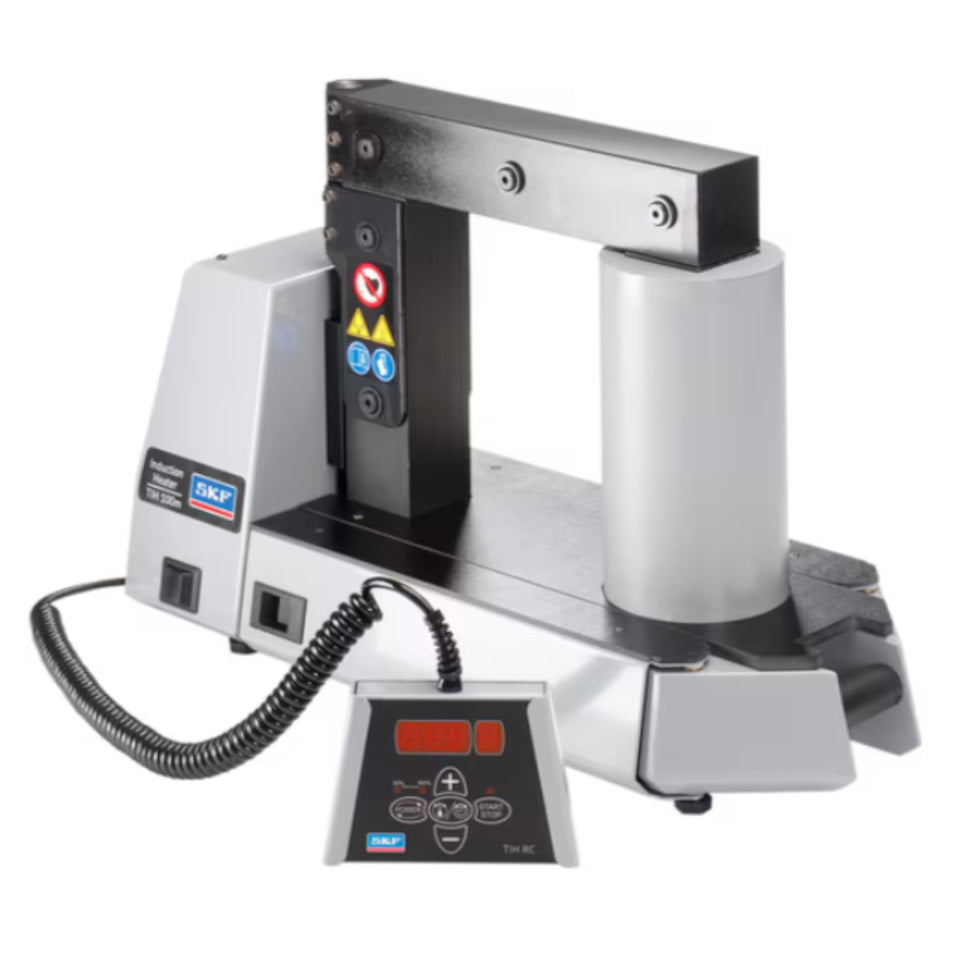

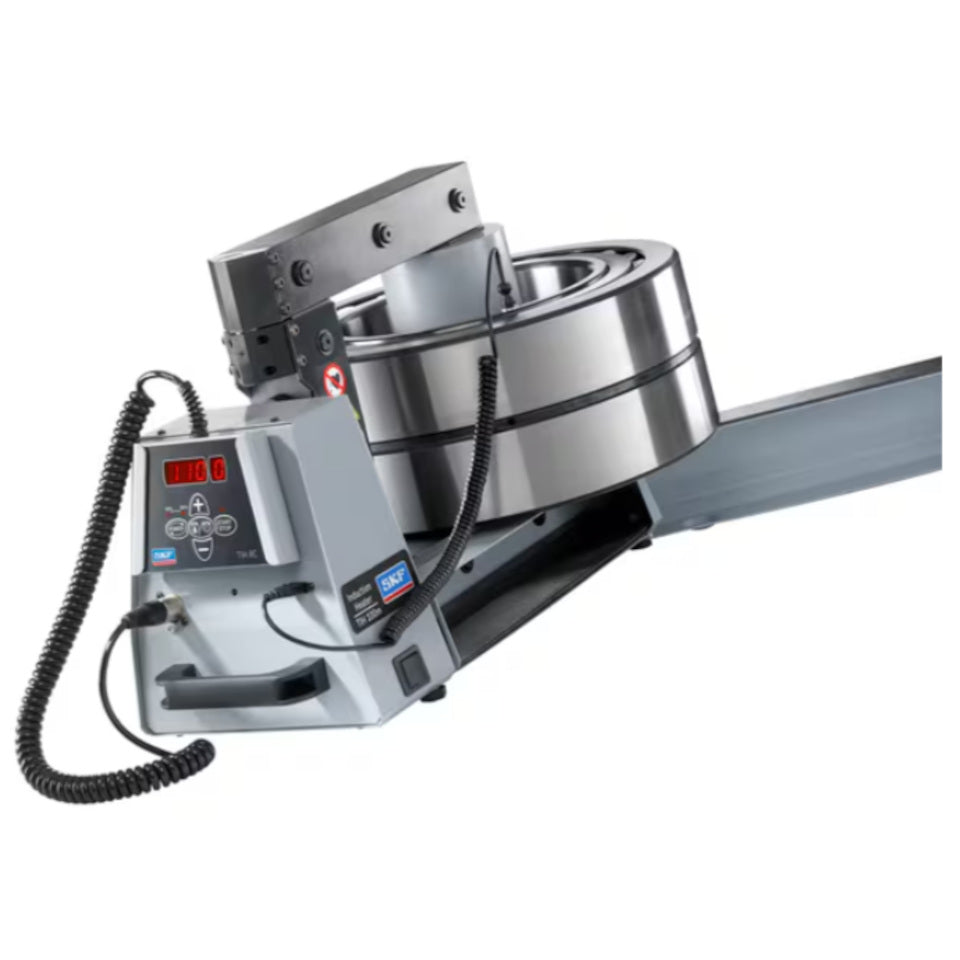

SKF medium-sized induction heater designed for the safe and efficient hot mounting of bearings weighing up to 120 kg.
The TIH 100M/230V provides temperature- or time-controlled heating for bearings with bore diameters from 20 to 400 mm. Automatic demagnetisation helps prevent metallic contamination, while the temperature-hold function keeps the bearing warm after the heating cycle. Its compact, portable design is suitable for workshop benches and on-site maintenance.

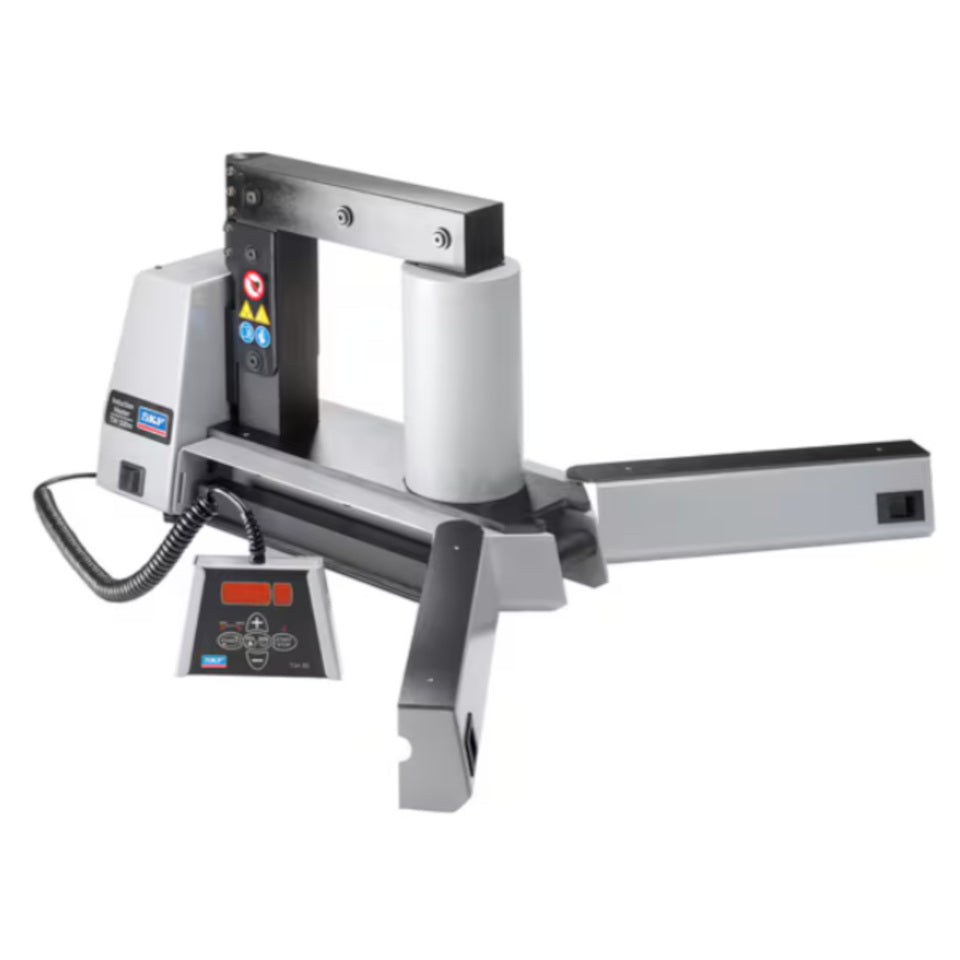

Supplied with one swivel yoke and two smaller yokes, all accommodated in the integrated storage compartment.
Product characteristics
Category: Induction bearing heaters
Manufacturer: SKF
Product designation: TIH 100M/230V
Heater size: Medium
Application: Hot mounting of bearings and other ring-shaped components
Control modes: Temperature and time
Temperature-hold function: Automatic
Demagnetisation: Automatic, less than 2 A/cm
Maximum bearing weight: 120 kg
Maximum non-bearing workpiece weight: 60 kg
Bearing bore range: 20–400 mm
Coil diameter: 110 mm
EAN: 7316572520444
Electrical data
Supply voltage: 200–240 V
Rated version: 230 V
Frequency: 50–60 Hz
Maximum power consumption: 3.6 kVA
Voltage classification: LV
Temperature control
Temperature range: 20 to 250°C
Equivalent range: 68 to 482°F
Temperature probe: Magnetic
Time-control range: 0–60 minutes
Dimensions and weight
Overall dimensions: 570 × 230 × 350 mm
Operating area: 155 × 205 mm
Total weight including yokes: 42 kg
Yokes supplied
80 mm yoke: For a minimum bore diameter of 80 mm
40 mm yoke: For a minimum bore diameter of 40 mm
20 mm yoke: For a minimum bore diameter of 20 mm
Optional yokes are available for minimum bore diameters of 30 and 60 mm.
The SKF TIH 100M/230V combines high heating capacity with straightforward operation, making it suitable for maintenance workshops and industrial applications requiring controlled, repeatable bearing heating.
