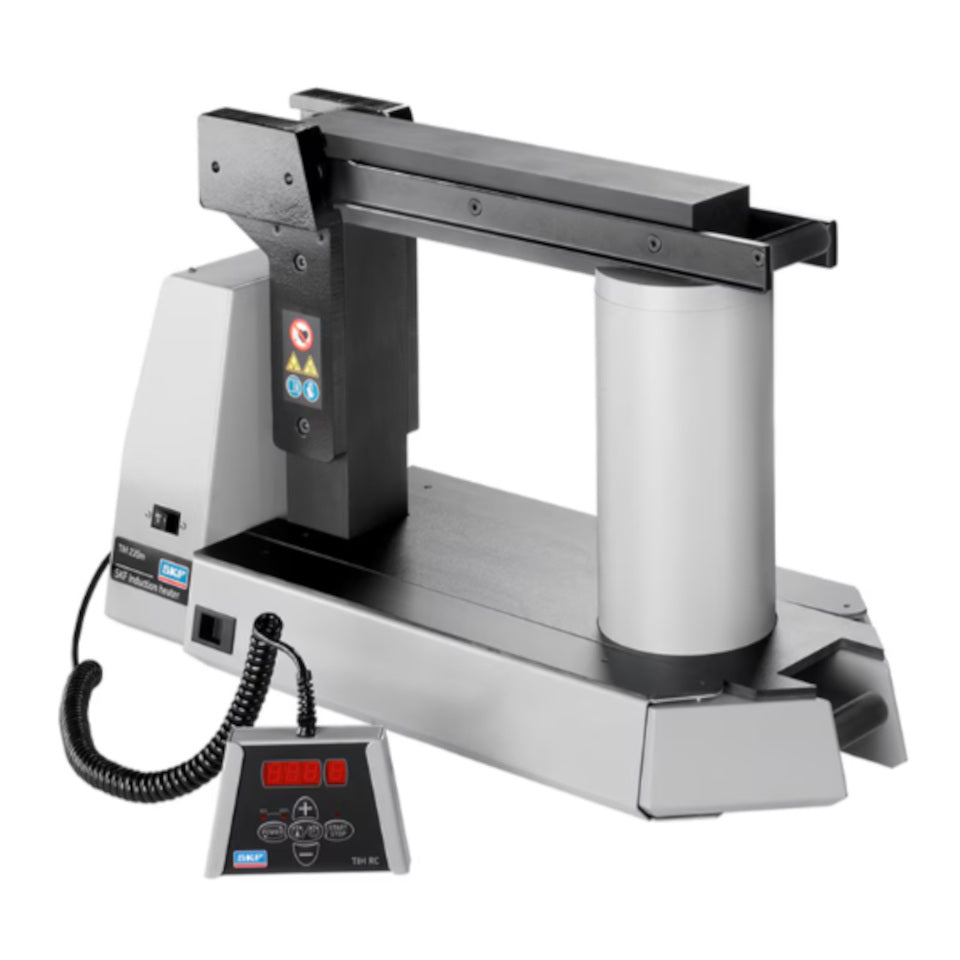

TIH220M/LV SKF Large Induction Heater 230V Version

SKF large induction heater designed for the safe and efficient hot mounting of bearings weighing up to 300 kg.

The TIH 220M/LV uses low-frequency induction to heat bearings evenly, expanding the inner ring for controlled mounting without excessive force. Its advanced electronics provide automatic temperature or time-controlled operation, current regulation, thermal overload protection and automatic demagnetisation.

A sliding main yoke assists with loading and unloading, while folding support arms provide additional stability when heating large-diameter bearings. The remote control incorporates the operating buttons and LED display, allowing the heating cycle to be controlled from a convenient distance.

Product characteristics

Category: Induction bearing heaters
Manufacturer: SKF
Product designation: TIH 220M/LV
Series: TIH 220m
Heater size: Large
Heater type: Workshop-floor induction heater
Heating method: Low-frequency induction
Application: Hot mounting of bearings and other ring-shaped components
Suitable for mounting: Yes
Suitable for dismounting: No
Maximum bearing weight: 300 kg
Maximum solid workpiece weight: 150 kg
Workpiece bore range: 40–600 mm with an appropriate yoke
Standard minimum bearing bore: 60 mm
Workpiece outside diameter range: 52–1,100 mm
Coil diameter: 140 mm

Heating performance

SKF m20 performance: 220 kg
Performance example: 220 kg bearing heated to 110°C in approximately 20 minutes
Power settings: Two, 50% and 100%

The two-stage power control allows smaller or more sensitive components to be heated at a reduced power level, helping limit unnecessary energy consumption and temperature differences.

Heating controls

Control modes: Temperature and time
Temperature range: 0 to 250°C
Equivalent temperature range: 32 to 482°F
Temperature probe: Magnetic K-type probe
Temperature accuracy: ±2°C
Time-control range: 0–60 minutes
Time-control accuracy: ±0.01 seconds
Bearing mode: Preset to 110°C
Thermometer mode: Yes
Temperature-hold function: Automatic
Demagnetisation: Automatic, less than 2 A/cm
Thermal overload protection: Yes
Error-guidance codes: Yes
Control panel: Remote keyboard with LED display

The temperature-hold function keeps the bearing warm after the heating cycle, while automatic demagnetisation helps prevent the heated component from attracting metallic contaminants.

Electrical data

Supply voltage: 200–240 V
Frequency: 50–60 Hz
Maximum power consumption: 11.5 kVA
Voltage classification: LV

Dimensions and weight

Dimensions W × D × H: 750 × 290 × 440 mm
Operating area W × H: 250 × 255 mm
Total weight including yokes: 86 kg

Yokes

Main sliding yoke: 70 × 70 × 430 mm
Main-yoke minimum bore diameter: Approximately 100 mm
Smaller yoke: 40 × 40 × 430 mm
Smaller-yoke minimum bore diameter: Approximately 60 mm
Optional minimum bore diameter: 40 mm
Internal yoke storage: Yes
Sliding-yoke mechanism: Yes

Features and benefits

• High heating capacity for bearings weighing up to 300 kg
• Heats a 220 kg bearing to 110°C in approximately 20 minutes
• External induction coil provides efficient energy transfer and shorter heating times
• Automatic temperature- or time-controlled heating
• Magnetic temperature probe helps prevent bearing overheating
• Automatic demagnetisation reduces contamination risk
• Two power settings support efficient heating of smaller components
• Sliding main yoke simplifies bearing loading and removal

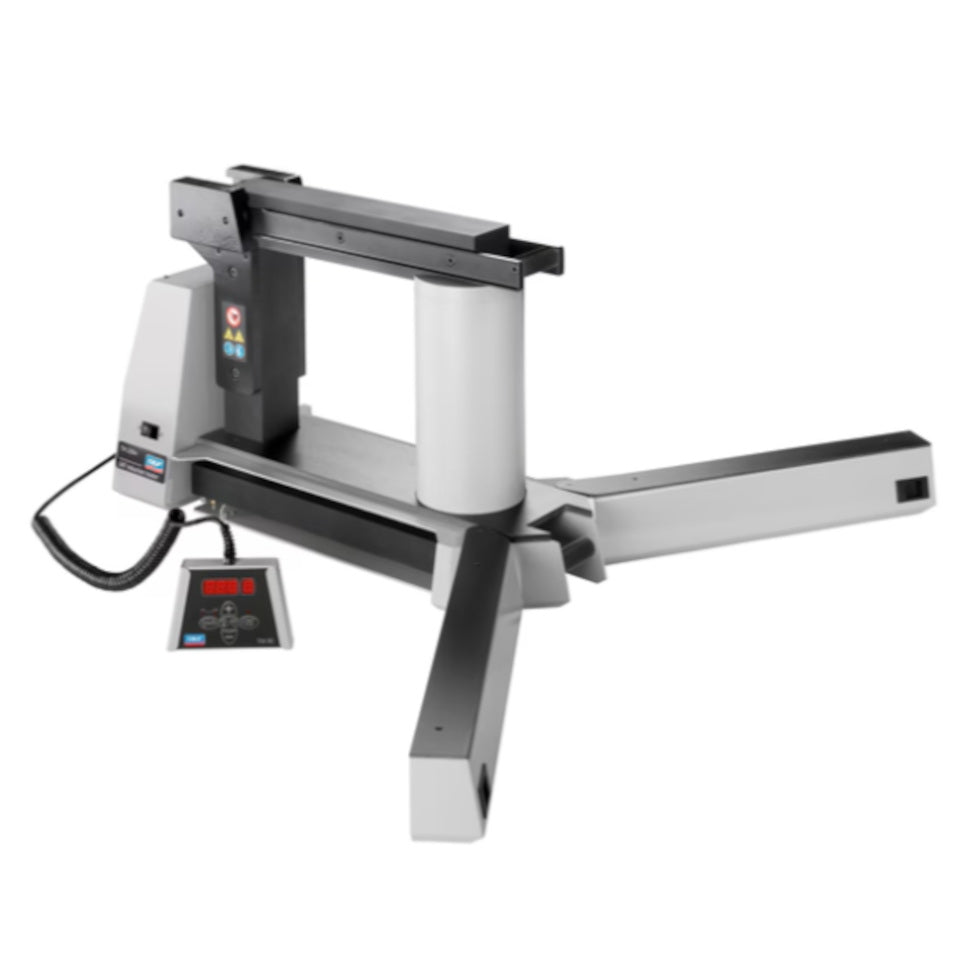

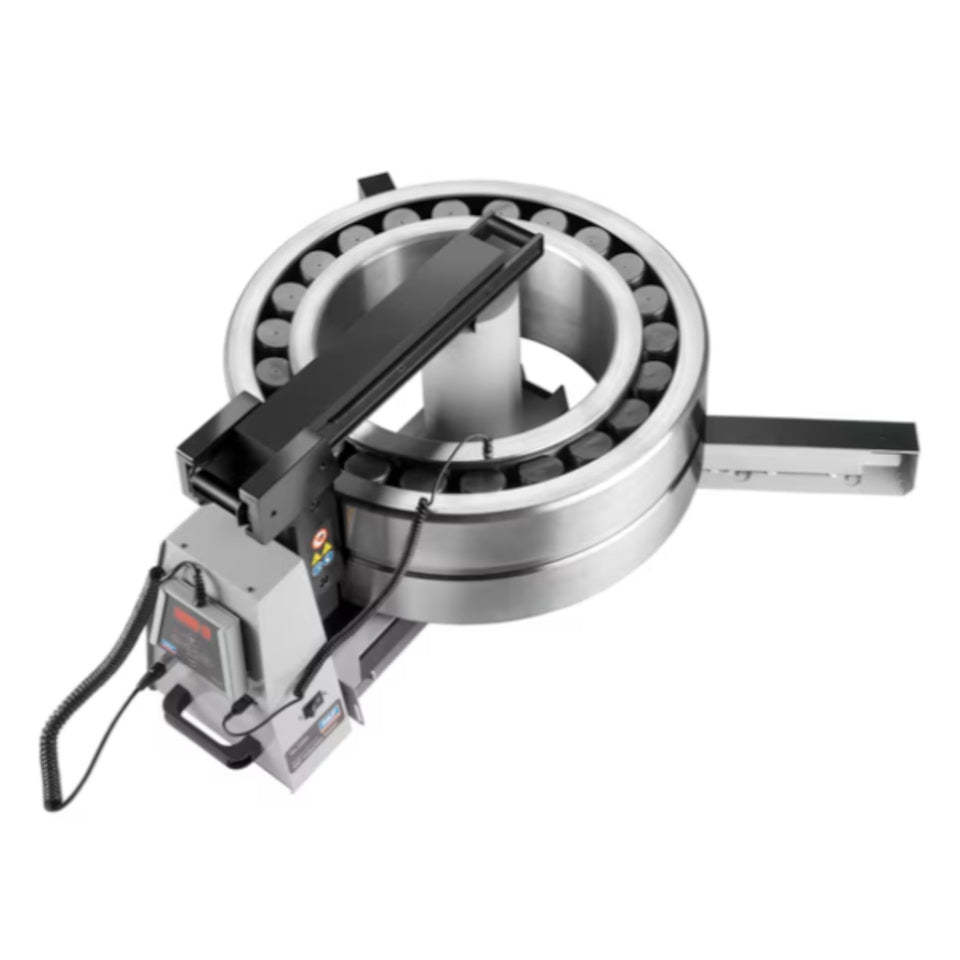

• Folding support arms stabilise larger-diameter bearings
• Remote control with integrated LED operating display
• Internal storage protects the smaller yoke from loss or damage
• Thermal protection safeguards the induction coil and electronics
• Integrated carrying handles provide a secure grip when repositioning the heater

The SKF TIH 220M/LV is a robust heating solution for industrial maintenance departments and workshops that regularly install large bearings. Its combination of high capacity, automatic control and user-friendly handling provides a fast, repeatable and controlled alternative to flame, oil-bath or oven heating.
