TMBH5/230V SKF Compact portable induction heater 230V Version

SKF compact induction heater designed for the safe and efficient hot mounting of bearings weighing up to 5 kg.

The TMBH 5/230V uses medium-frequency induction technology to generate heat directly within the bearing or other ring-shaped metallic component. Heating expands the component, allowing it to be mounted onto a shaft without excessive force and reducing the risk of installation damage.

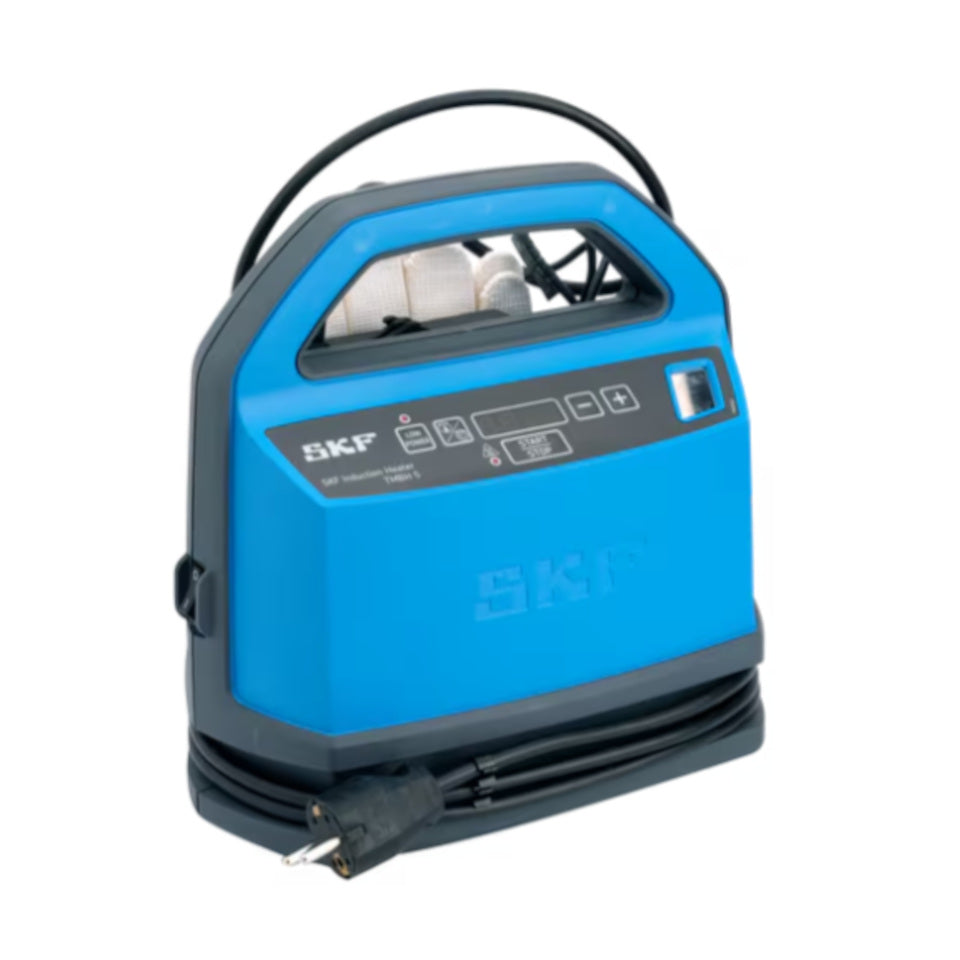

Its lightweight housing, integrated handle and accessory-storage compartments make it suitable for use at a workbench, on the factory floor or during field maintenance. Typical applications include servicing gearboxes, pumps, fans and blowers.

Product characteristics

Category: Induction bearing heaters
Manufacturer: SKF
Product designation: TMBH 5/230V
Heater size: Compact
Heater type: Portable induction heater
Heating method: Medium-frequency induction
Application: Hot mounting of bearings and other ring-shaped metallic components
Suitable for mounting: Yes
Maximum bearing weight: 5 kg
Bearing bore range: 20–100 mm
Maximum bearing width: 50 mm
Housing material: Special polyamide with TPU rubber overmoulding
EAN: 7316581962013

Heating system

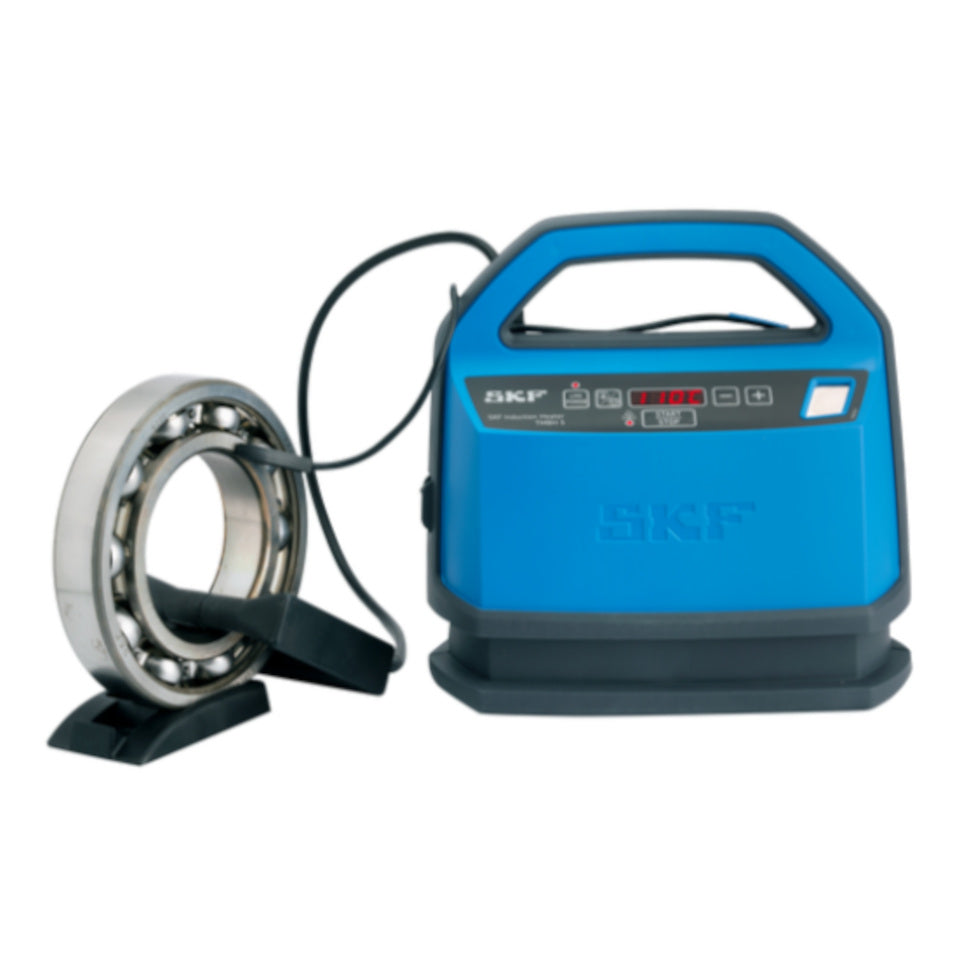

Unlike conventional induction heaters, the TMBH 5 uses a flexible induction clamp with thin heating fingers. This eliminates the need to select and change support yokes for different bearing sizes, making the heater suitable for a wide range of small components.

The medium-frequency technology heats quietly and does not magnetise the component. An LED indicator clearly shows when the heating cycle is operating.

Heating controls

Control modes: Temperature and time
Temperature range: 40–200°C
Equivalent temperature range: 104–392°F
Time-control range: 5 seconds to 60 minutes
Temperature measurement: Magnetic K-type probe
Automatic temperature monitoring: Yes
Thermometer mode: Yes
Power settings: 10%, 25%, 50% and 100%
Demagnetisation required: No
Residual magnetism: 0 A/cm
Thermal overload protection: Yes
Error-guidance codes: Yes
Control panel: Integrated LED control panel

Multiple power settings allow sensitive components, including bearings with shields or metallic inserts in their seals, to be heated more gradually when required.

Electrical data

Supply voltage: 230 V ±10%
Operating voltage range: 220–240 V
Frequency: 50–60 Hz
Maximum power: 350 W
Maximum current consumption: 2 A

Dimensions and weight

Dimensions W × L × H: 270 × 180 × 275 mm
Total weight: Approximately 3 kg
Temperature-probe cable length: 600 mm

Components supplied

TMBH 5 induction heater: 1
TMBH 5-4 induction heating clamp with cable and plug: 1
TMBH 5-5 bearing holder: 1
TMBH 5-3 magnetic K-type temperature probe: 1
TMBA G11 heat-resistant gloves: 1 pair
Power cable: 1
Instructions for use: 1

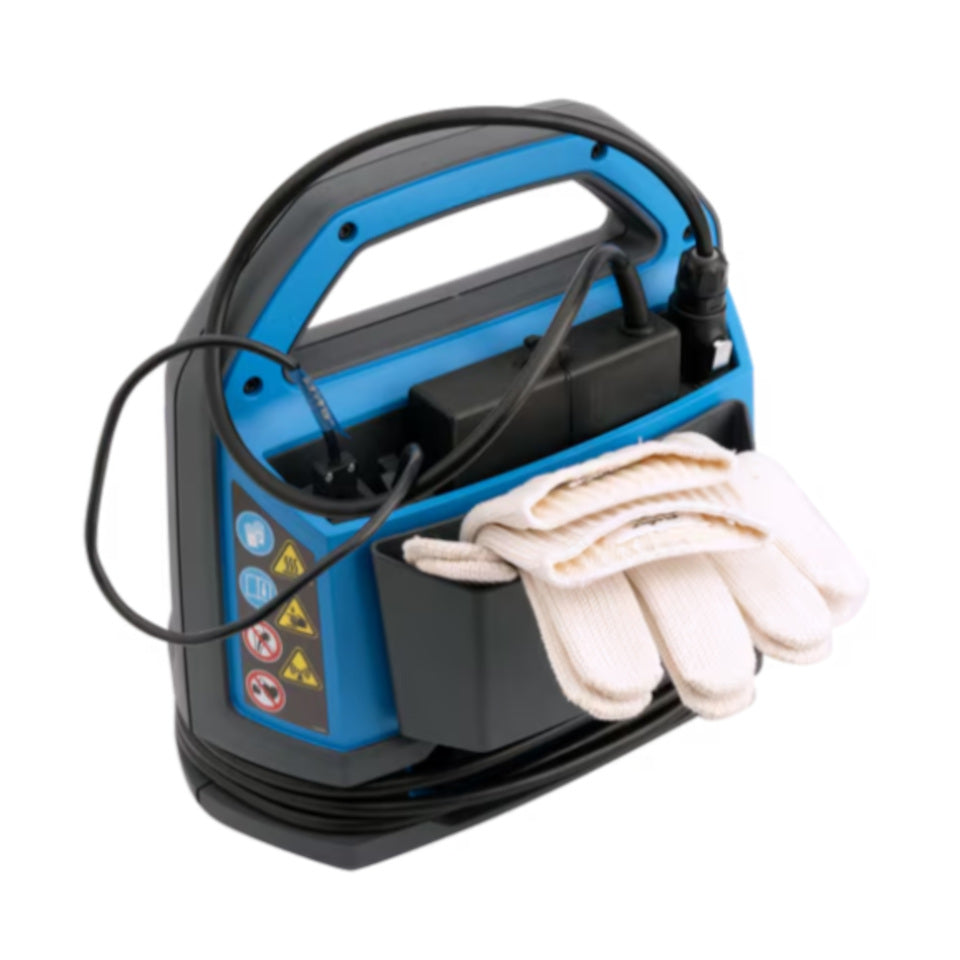

The heater, clamp, probe and additional accessories can be stored in the integrated side compartments for convenient transport and storage.

Features and benefits

• Compact and lightweight design for workshop or field use
• Suitable for bearings weighing up to 5 kg
• Accommodates bearing bore diameters from 20 to 100 mm
• Medium-frequency induction provides fast and efficient heating
• Flexible induction clamp eliminates the need for interchangeable yokes
• Temperature- and time-controlled heating modes
• Four power settings for standard and sensitive components
• Automatic temperature monitoring helps prevent overheating
• Does not magnetise the heated component
• Quiet operation with an LED heating indicator
• Integrated handle provides convenient portability
• Built-in compartments keep accessories organised
• Supplied with the clamp, bearing holder, probe and protective gloves

The SKF TMBH 5/230V is a practical solution for maintenance engineers who need a portable, precise and easy-to-use heater for installing small bearings and other interference-fit components.
