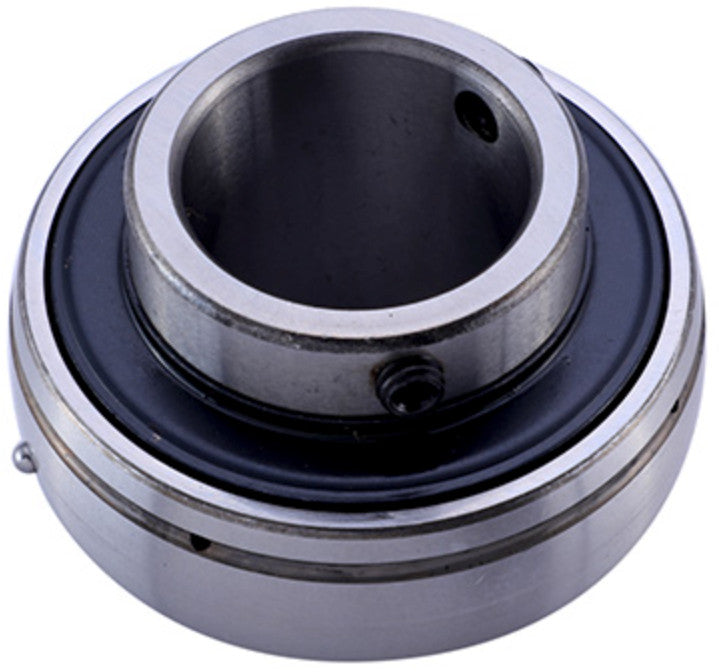

UC207-22 BKL Brand Spherical Outside Bearing Insert 1.3/8 inch Bore

In stock
SKU: UC207-22-BUDGET
BKL UC207-22 sealed bearing insert for a 1 3/8 inch (34.925 mm) shaft, with a 72 mm spherical outside diameter, 42.9 mm inner ring width and grub screw locking.

$11.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Budget
  • Vendor BKL Brand
  • SKU UC207-22-BUDGET
  • Inside diameter (d) 34.925mm
  • Outside diameter (D) 72mm
  • Width (B) 42.9mm
The BKL Brand UC207-22 is a sealed ball bearing insert for a 1 3/8 inch (34.925 mm) shaft. Its 72 mm spherical outer ring fits a compatible housing with a spherical seat, allowing for initial misalignment during installation. Grub screws in the extended inner ring... Read full description ↓ Show less ↑

The BKL Brand UC207-22 is a sealed ball bearing insert for a 1 3/8 inch (34.925 mm) shaft. Its 72 mm spherical outer ring fits a compatible housing with a spherical seat, allowing for initial misalignment during installation. Grub screws in the extended inner ring secure the bearing to the shaft.

This listing is for the bearing insert only. When matching a replacement, check the shaft diameter, 72 mm outside diameter and 42.9 mm inner ring width.

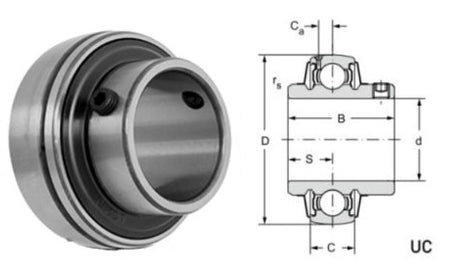

Dimensions and technical details

Product designation: UC207-22
Series: UC200
Shaft diameter: 1 3/8 inch (34.925 mm)
Spherical outside diameter: 72 mm
Inner ring width: 42.9 mm
Outer ring width: 20 mm
Grub screw thread: 0.224
Basic dynamic load rating: 25,700 N
Basic static load rating: 15,200 N
Approximate weight: 0.45 kg
Shaft locking method: Grub screws

Available from Bearing King Ltd for machinery maintenance and bearing replacement.
