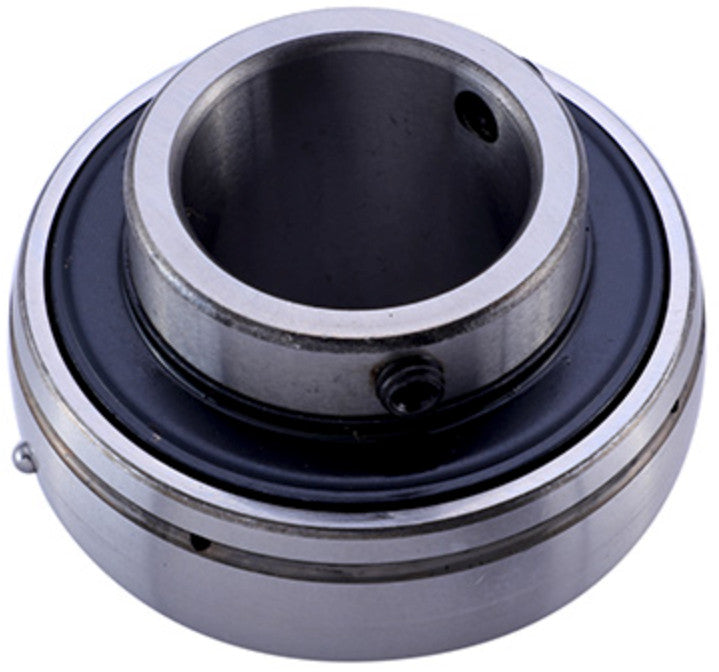

UC216 BKL Brand Spherical Outside Bearing Insert 80mm Bore

In stock
SKU: UC216-BUDGET
BKL UC216 sealed bearing insert for a 80 mm shaft, with a 140 mm spherical outside diameter, 82.6 mm inner ring width and grub screw locking.
Regular price £64.97 inc.VAT
£54.14 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Budget
  • Vendor BKL Brand
  • SKU UC216-BUDGET
  • Inside diameter (d) 80mm
  • Outside diameter (D) 140mm
  • Width (B) 82.6mm
The BKL Brand UC216 is a sealed ball bearing insert for a 80 mm shaft. Its 140 mm spherical outer ring fits a compatible housing with a spherical seat, allowing for initial misalignment during installation. Grub screws in the extended inner ring secure the bearing... Read full description ↓ Show less ↑

The BKL Brand UC216 is a sealed ball bearing insert for a 80 mm shaft. Its 140 mm spherical outer ring fits a compatible housing with a spherical seat, allowing for initial misalignment during installation. Grub screws in the extended inner ring secure the bearing to the shaft.

This listing is for the bearing insert only. When matching a replacement, check the shaft diameter, 140 mm outside diameter and 82.6 mm inner ring width.

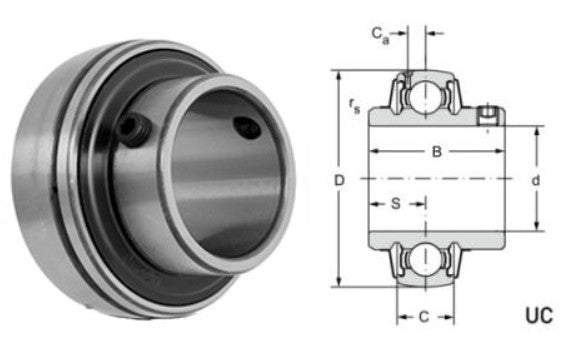

Dimensions and technical details

Product designation: UC216
Series: UC200
Shaft diameter: 80 mm
Spherical outside diameter: 140 mm
Inner ring width: 82.6 mm
Outer ring width: 33 mm
Shaft locking method: Grub screws

Available from Bearing King Ltd for machinery maintenance and bearing replacement.
