These bearing housings have square flanges which can be easily installed onto a machine with four bolts. They are extensively used for various kinds of transmission equipment and machinery.
The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.
Also Known As: SF1.3/4

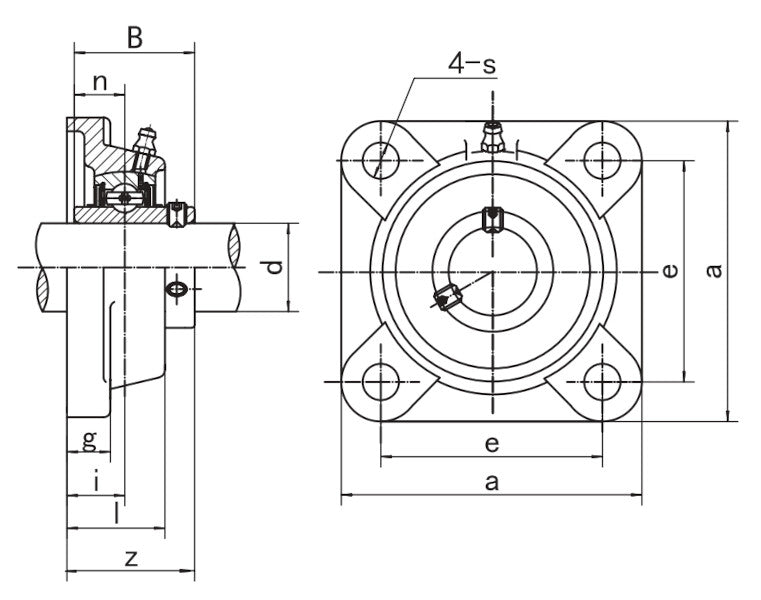

Product Dimensions:
d:1.3/4"
a:137mm
e:105mm
i:22mm
g:18mm
I:38mm
S:16mm
Z:52.2mm
Bi:49.2mm
n:19.0mm
Weight: 2.3kg
Bolt Used: M14 or 1/2
Basic Bearing Insert: UC209-28
Housing Group: F209
Load Rating Dynamic: 2560kgf
Load Rating Static: 1800kgf
