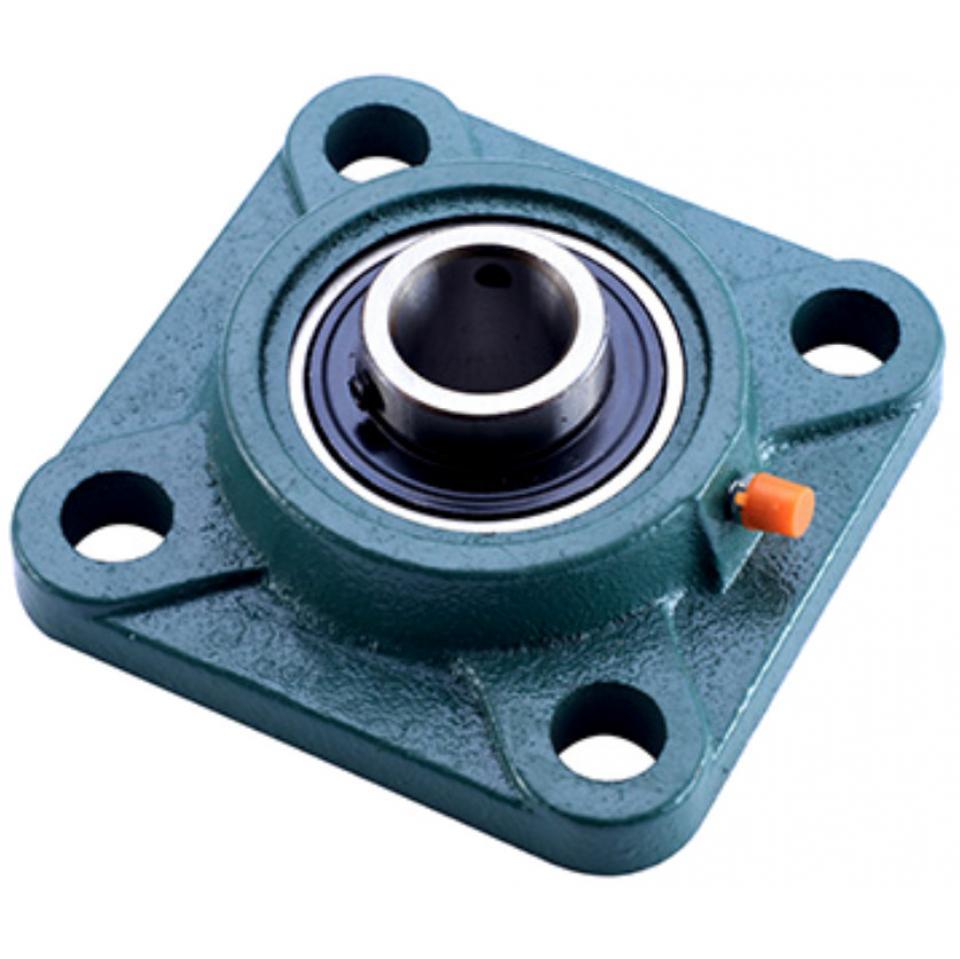

UCF317 BKL Brand 4 Bolt Flange Bearing 85mm Shaft

In stock
SKU: UCF317-BUDGET
BKL Brand Normal Duty 4 Bolt Hole Flange Bearing 85mm - Basic Bearing Insert: UC317, Housing Group: F317
Regular price £228.00 inc.VAT
£190.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Budget
  • Vendor BKL Brand
  • SKU UCF317-BUDGET
  • Inside diameter (d) 85mm
These bearing housings have square flanges which can be easily installed onto a machine with four bolts. They are extensively used for various kinds of transmission equipment and machinery.The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic... Read full description ↓ Show less ↑

These bearing housings have square flanges which can be easily installed onto a machine with four bolts. They are extensively used for various kinds of transmission equipment and machinery.

The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.

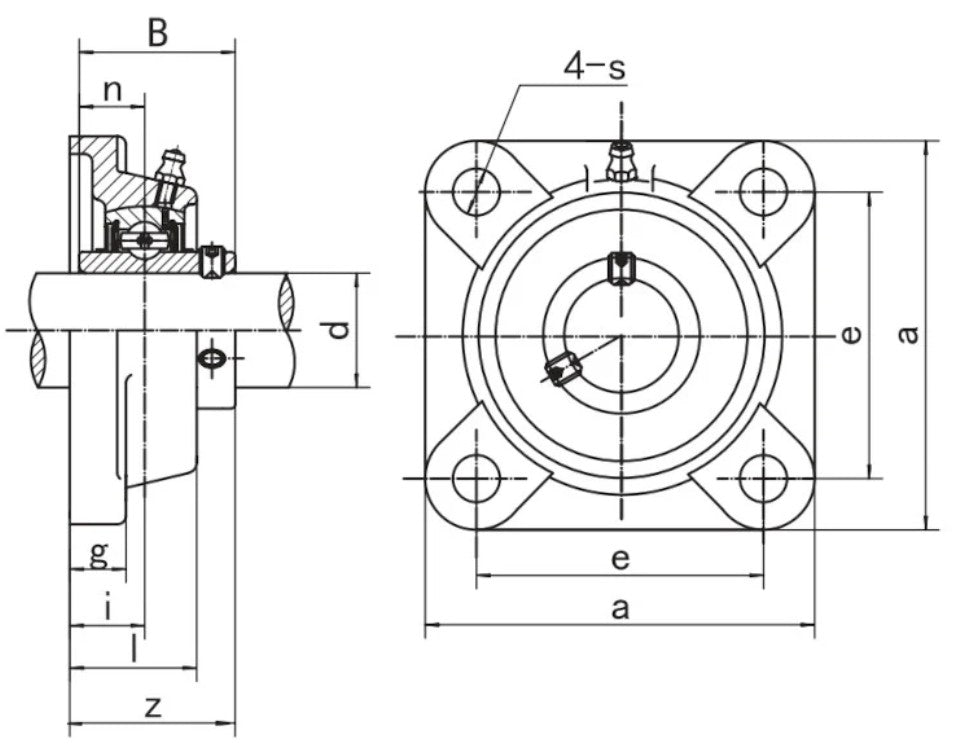

Product Dimensions:
d:85mm
a:260mm
e:204mm
i:44mm
g:27mm
I:74mm
S:31mm
Z:100mm
Bi:96mm
n:40mm

Weight: 15.3kg
Bolt Used: M27
Basic Bearing Insert: UC317
Housing Group: F317
Load Rating Dynamic: 132.6 kN
Load Rating Static: 96.5 kN
