These bearing housings have square flanges which can be easily installed onto a machine with four bolts. They are extensively used for various kinds of transmission equipment and machinery.
The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.
Also Known As: MSF1.3/8

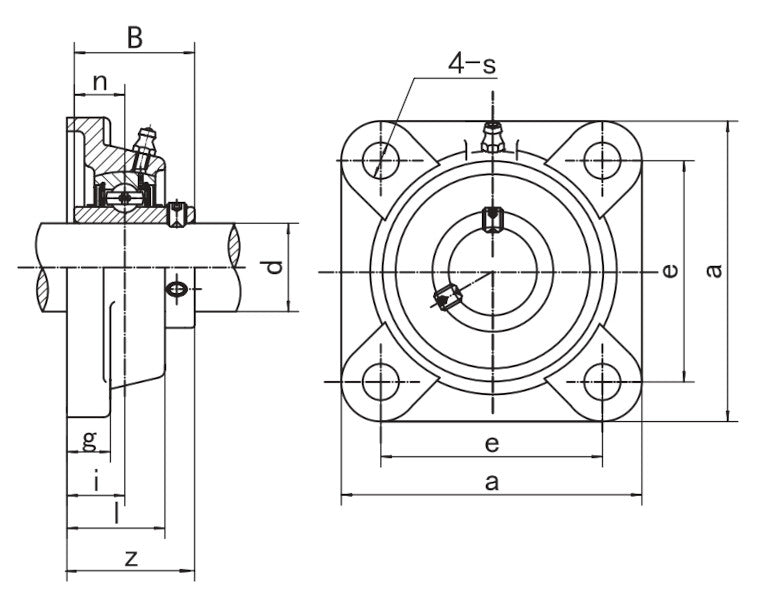

Product Dimensions:
d:1.3/8"
a:130mm
e:102mm
i:21mm
g:14mm
I:38mm
S:16mm
Z:51.2mm
Bi:49.2mm
n:19.0mm
Weight: 1.9kg
Bolt Used: M14 or 1/2"
Basic Bearing Insert: UCX07-22
Housing Group: FX07
Load Rating Dynamic: 2560kgf
Load Rating Static: 1810kgf
