These bearing housings have square flanges which can be easily installed onto a machine with four bolts. They are extensively used for various kinds of transmission equipment and machinery.
The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.
Also Known As: MSF2

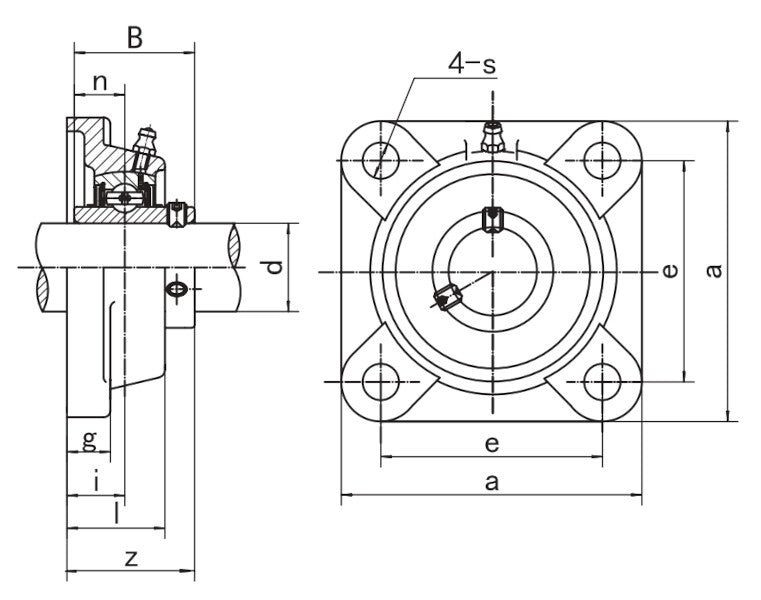

Product Dimensions:
d:2"
a:162mm
e:130mm
i:26mm
g:20mm
I:44mm
S:19mm
Z:59.4mm
Bi:55.6mm
n:22.2mm
Weight: 3.6kg
Bolt Used: M16 or 5/8"
Basic Bearing Insert: UCX10-32
Housing Group: FX10
Load Rating Dynamic: 3400kgf
Load Rating Static: 2550kgf
