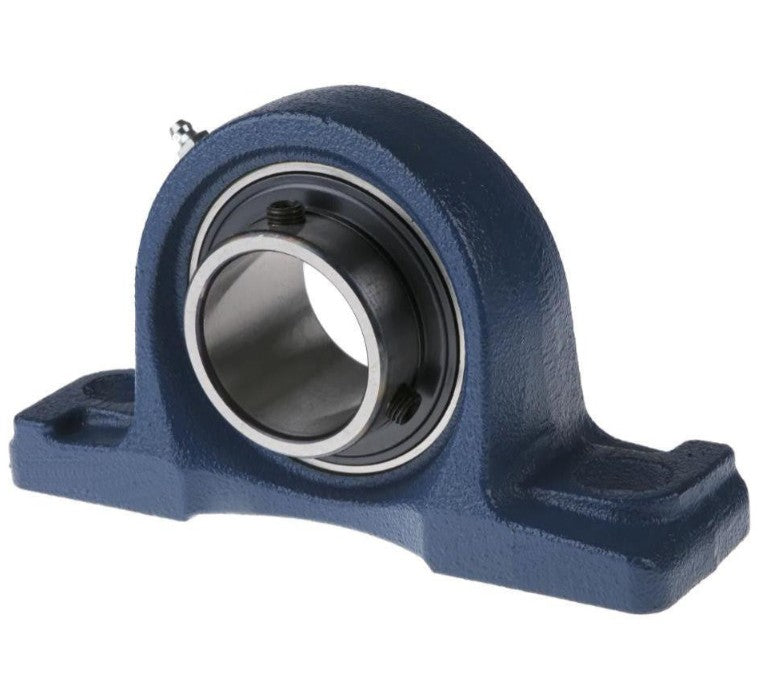

Pillow blocks with bearings mounted in rigid housings of simple construction are the most common bearing units. They are extensively used for various kinds of transmission equipment and machinery.
The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.

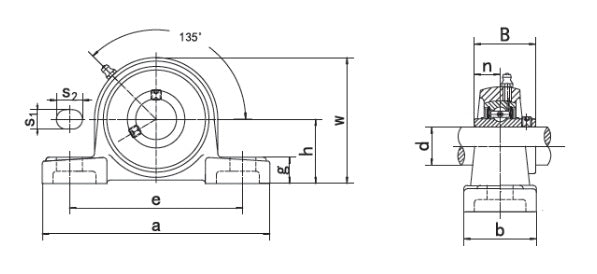

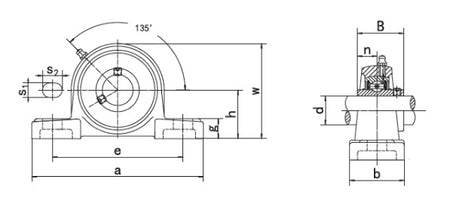

Product Dimensions:
d: 25.4mm (1 inch)
h: 33.34mm
a: 140mm
e: 105mm
b: 38mm
S1: 13mm
S2: 16mm
g: 15mm
w: 68mm
B: 34.1mm
n: 14.3mm
Bolt Used: M10
Basic Bearing Insert: UC205-16
Housing Group: LP205
Weight: 0.74 kg
