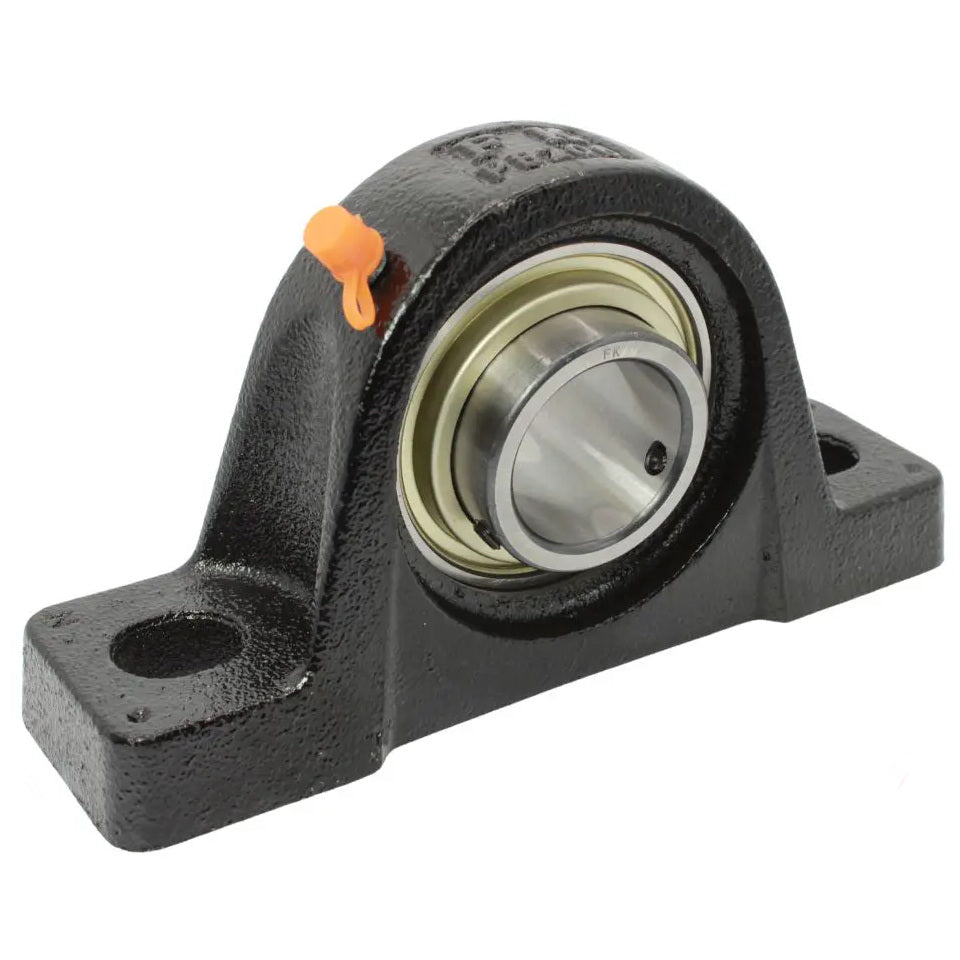

The UCP205 Triple Sealed Pillow Block Bearing Unit is a high-quality bearing assembly designed to provide reliable performance in agricultural, industrial and material handling applications. Available from trusted manufacturers including FK and Power Drive, this unit combines a durable cast iron housing with a precision-engineered insert bearing for long-lasting operation and reduced maintenance requirements.

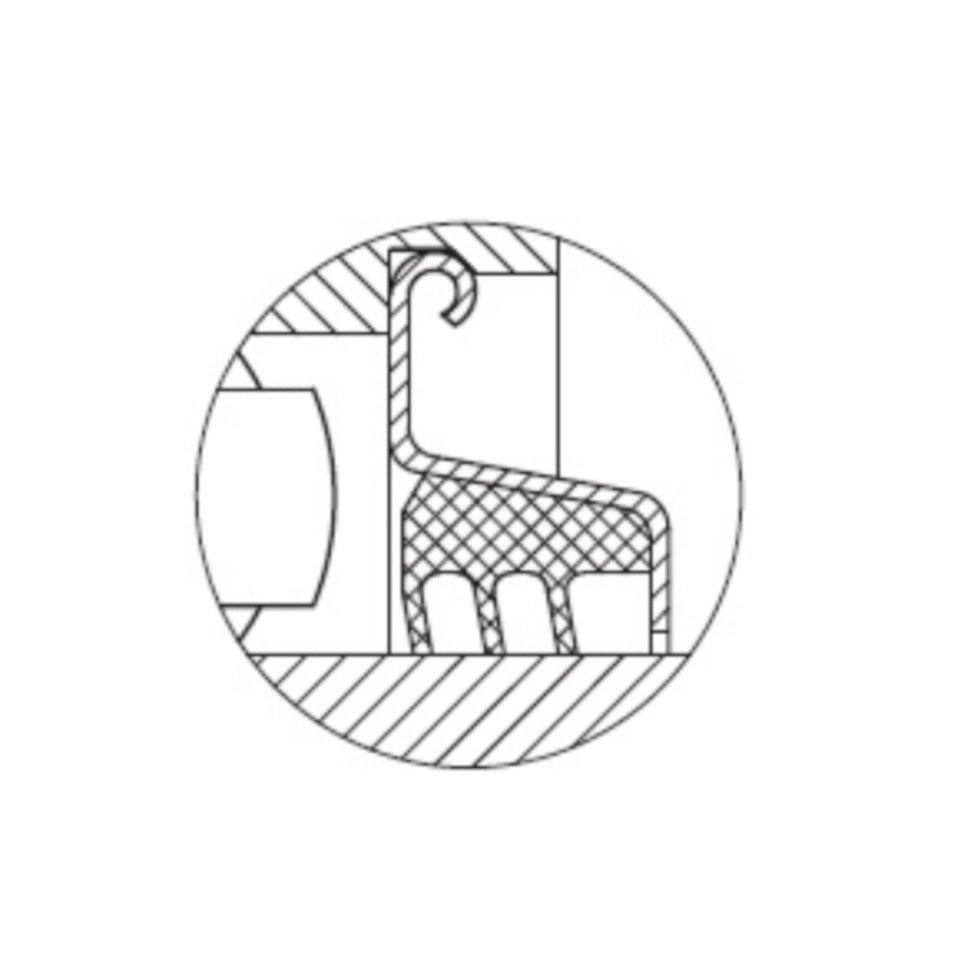

Featuring an enhanced triple-seal design, the UCP205 offers superior protection against dirt, dust, moisture and other contaminants, helping to extend bearing life in demanding environments. The self-aligning bearing insert accommodates minor shaft misalignment, while the twin grub screw locking system ensures secure shaft location and dependable performance.
Suitable for conveyors, agricultural machinery, workshop equipment, packaging machinery and a wide range of general engineering applications.
Features
- 25mm shaft bore
- Triple-sealed bearing for maximum contamination protection
- Heavy-duty cast iron housing
- Self-aligning insert bearing
- Twin grub screw shaft locking
- Pre-greased and relubricatable
- Suitable for agricultural and industrial applications
- Available in FK or Power Drive manufacture
- Fully interchangeable with standard UCP205 bearing units

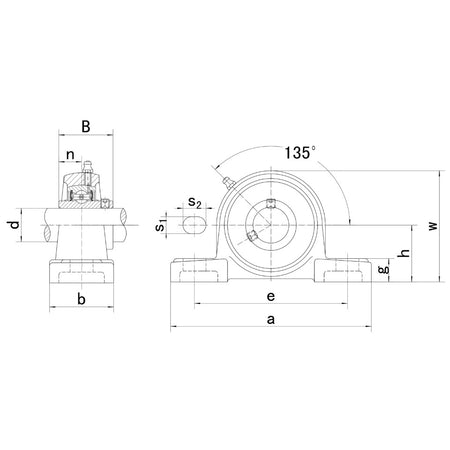

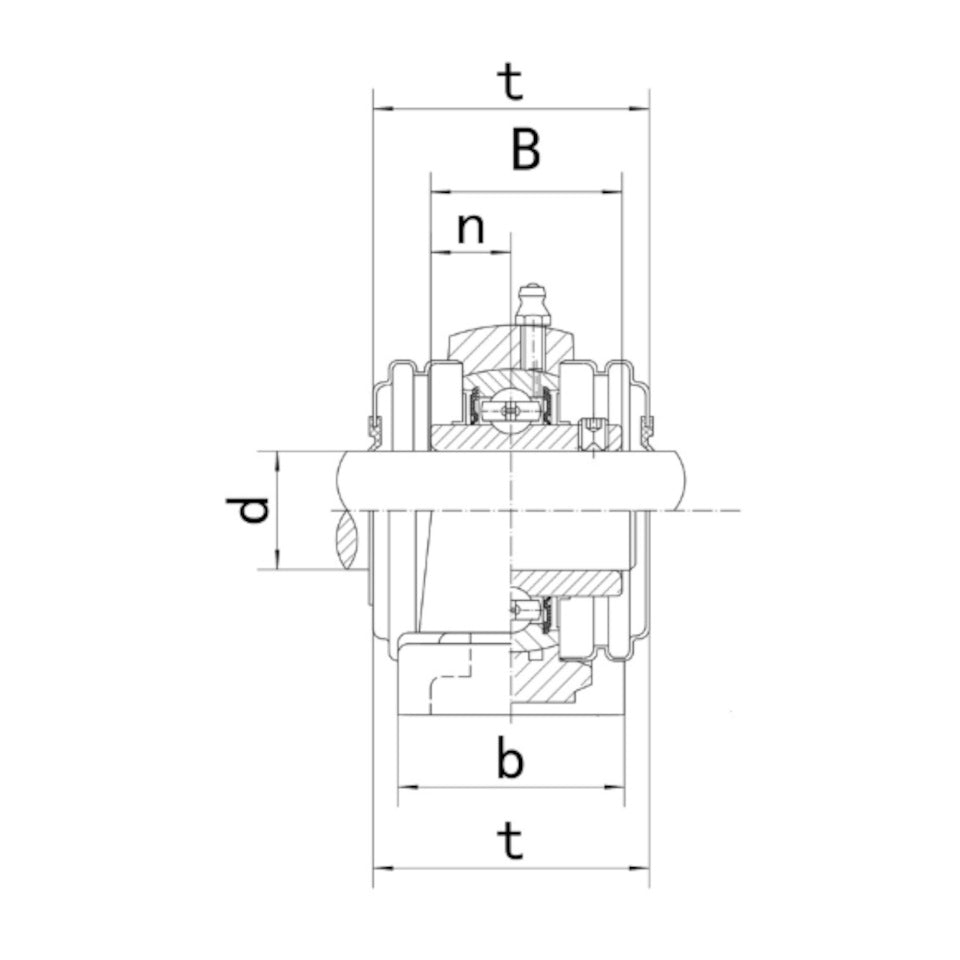

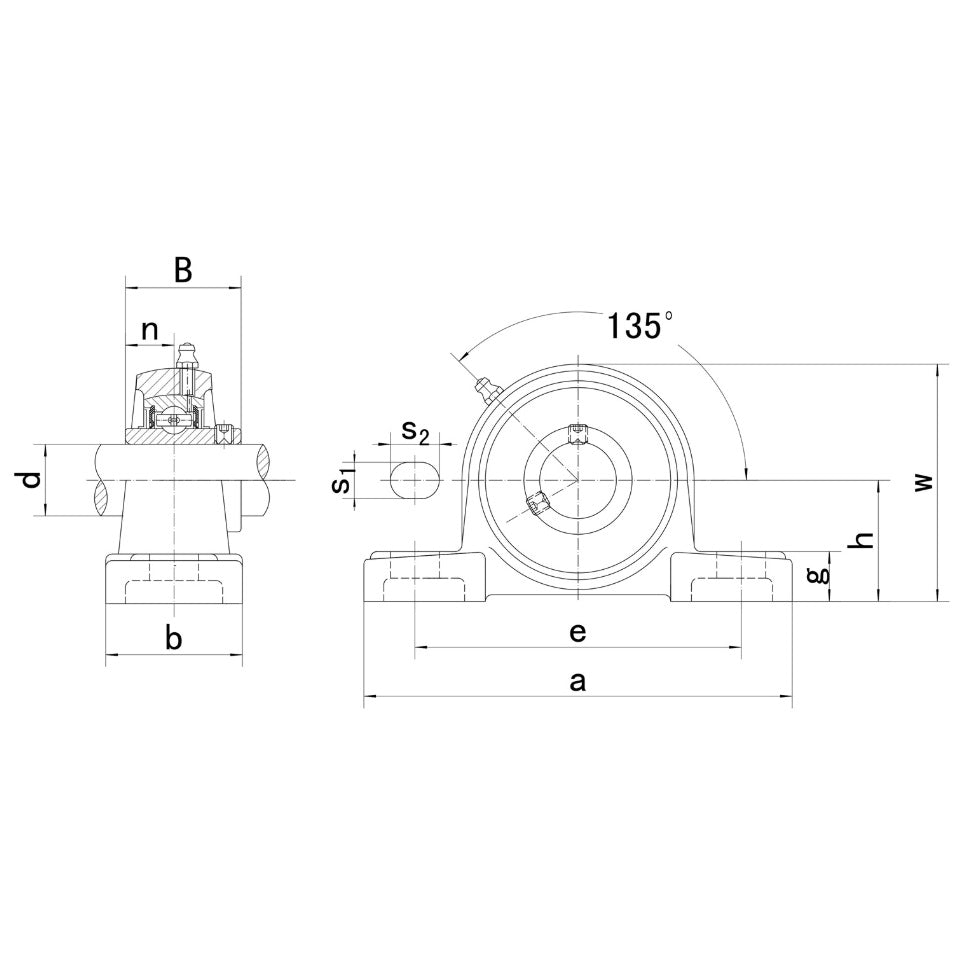

Specifications
- Shaft Diameter (d): 25mm
- Centre Height (h): 36.6mm
- Overall Length (a): 140mm
- Bolt Centre Spacing (e): 105mm
- Housing Width (b): 38mm
- Mounting Slot Length (s2): 16mm
- Mounting Slot Width (s1): 13mm
- Base Height (g): 16mm
- Overall Height (w): 70mm
- Inner Ring Width (Bi): 34mm
- Basic Dynamic Load Rating: 1,400kg
- Basic Static Load Rating: 785kg
- Unit Weight: 0.95kg
Brand Information
This product may be supplied as either FK or Power Drive depending on stock availability. Both manufacturers produce bearing units to the same dimensional standards and quality specifications, ensuring excellent durability, reliability and value for money.
