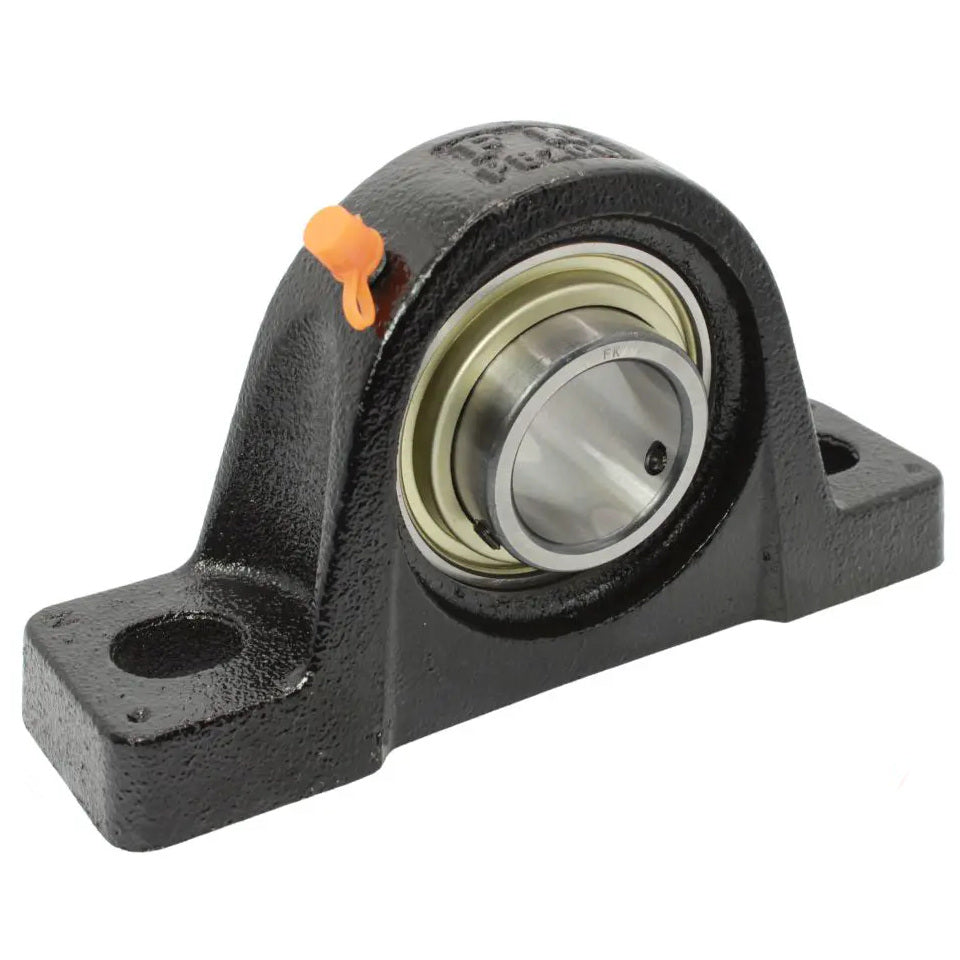

The UCP206 Triple Sealed Pillow Block Bearing Unit is a heavy-duty bearing assembly designed to provide dependable performance in demanding agricultural, industrial and material handling environments. Available from trusted manufacturers including FK and Power Drive, this unit combines a robust cast iron housing with a precision-engineered insert bearing to deliver excellent durability, load capacity and service life.
The enhanced triple-seal design offers superior protection against dirt, dust, moisture and other contaminants, helping to reduce maintenance requirements and extend bearing life in challenging operating conditions. The self-aligning bearing insert accommodates minor shaft misalignment, while the twin grub screw locking system ensures secure shaft retention and reliable operation.
Ideal for conveyors, agricultural machinery, processing equipment, workshop machinery and a wide range of general engineering applications.
Features
- 30mm shaft bore

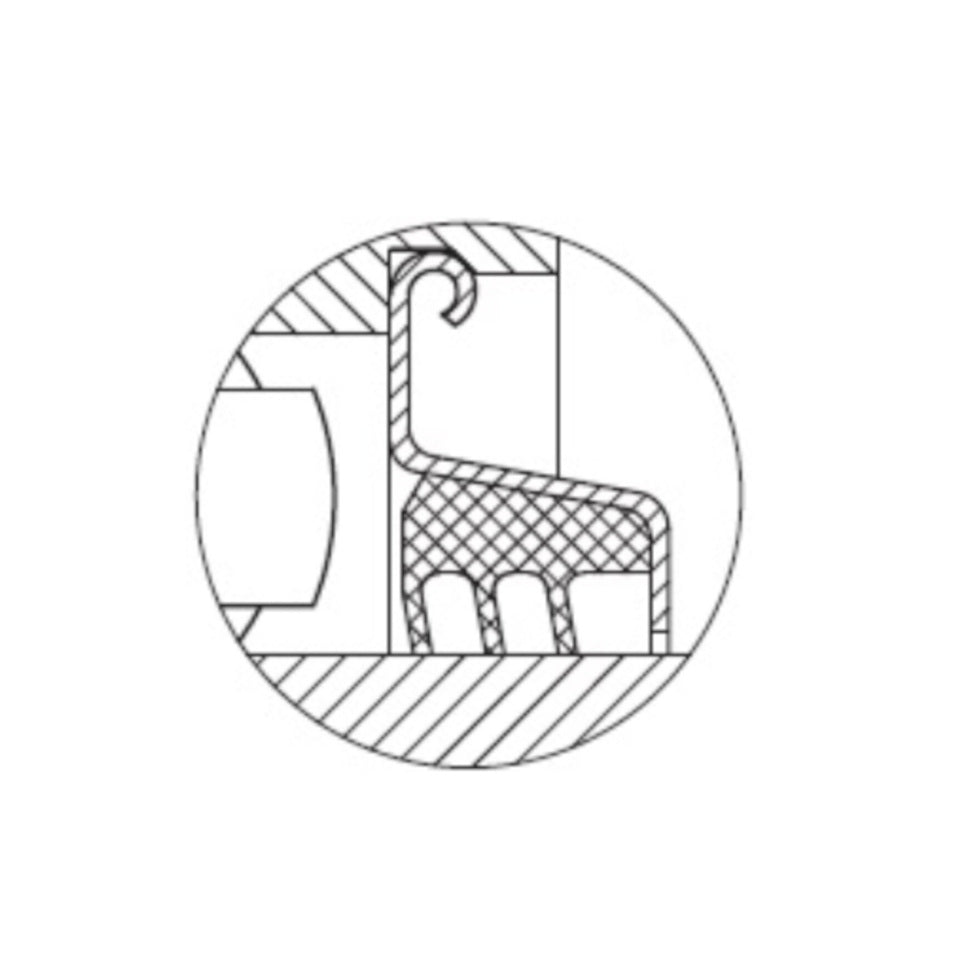

- Triple-sealed bearing for maximum contamination protection
- Heavy-duty cast iron housing
- Self-aligning insert bearing
- Twin grub screw shaft locking
- Pre-greased and relubricatable
- Suitable for agricultural and industrial applications
- Available in FK or Power Drive manufacture
- Fully interchangeable with standard UCP206 bearing units

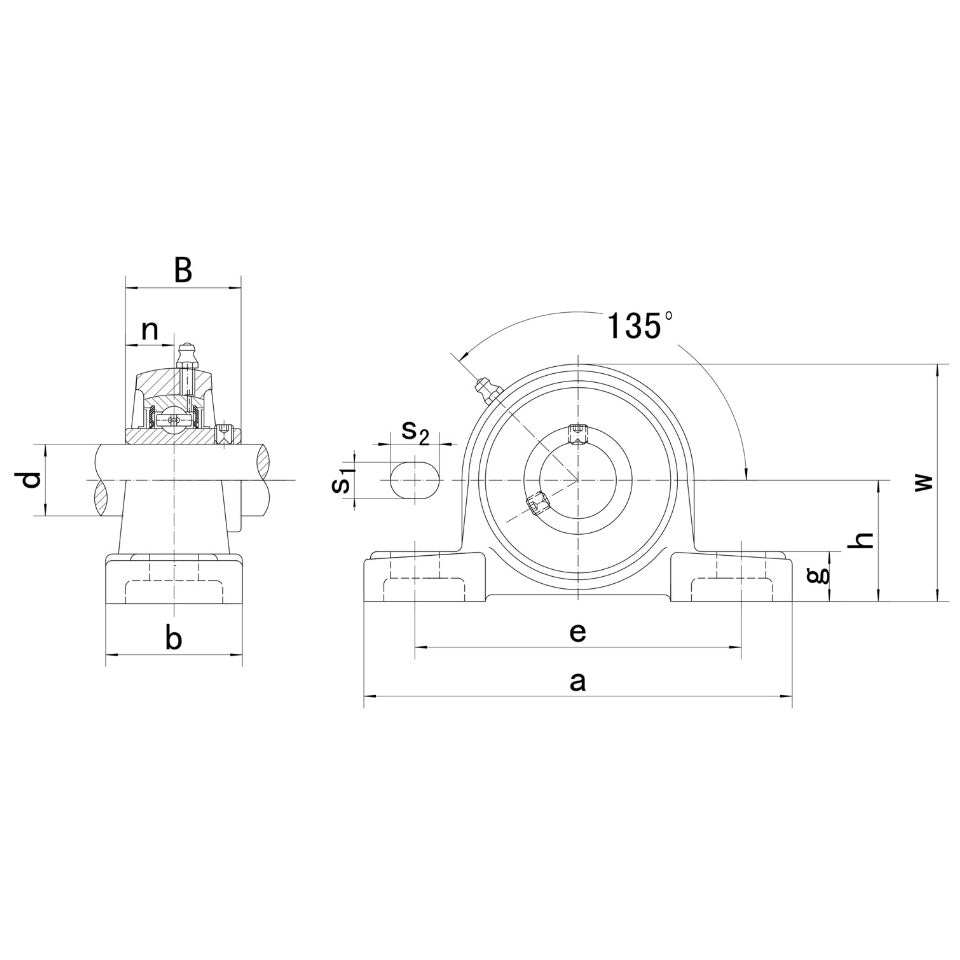

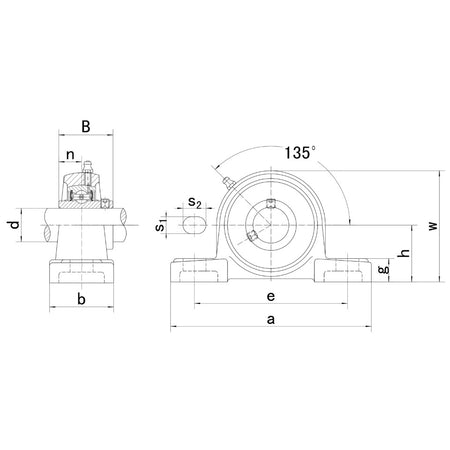

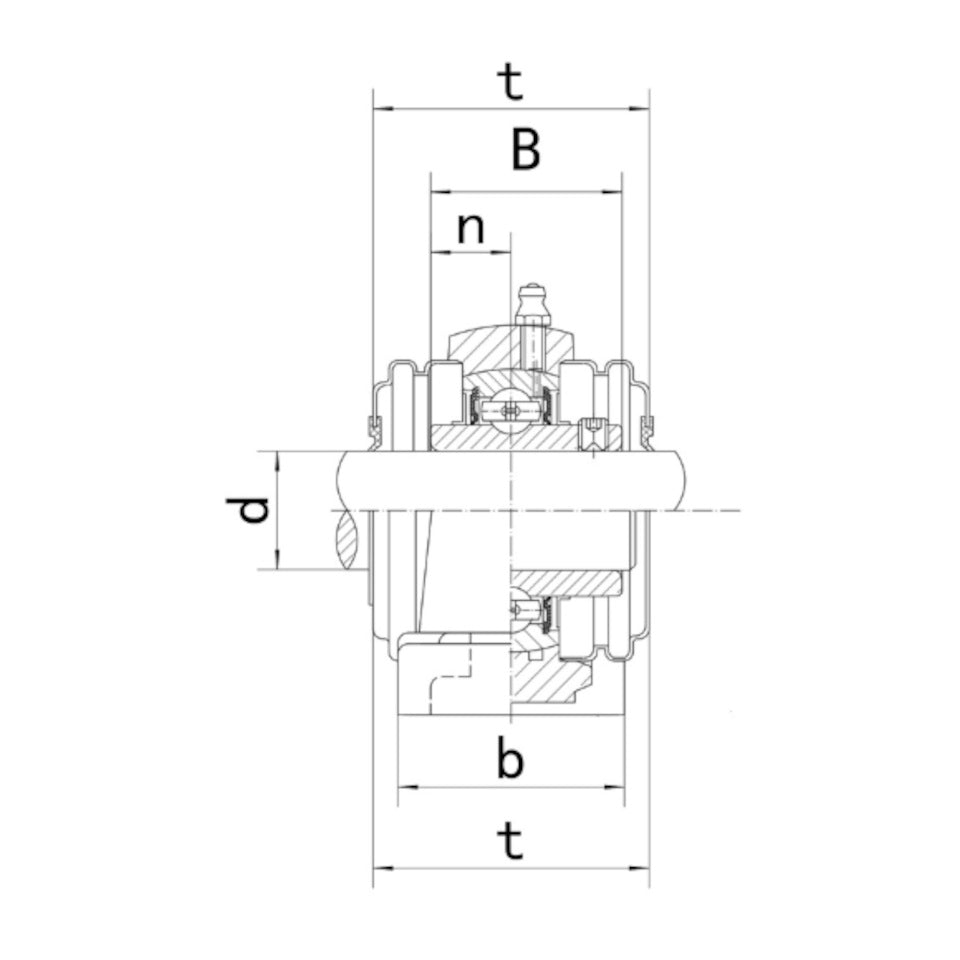

Specifications
- Shaft Diameter (d): 30mm
- Centre Height (h): 42.9mm
- Overall Length (a): 165mm
- Bolt Centre Spacing (e): 121mm
- Housing Width (b): 48mm
- Mounting Slot Length (s2): 21mm
- Mounting Slot Width (s1): 17mm
- Base Height (g): 18mm
- Overall Height (w): 83mm
- Inner Ring Width (Bi): 38.1mm
- Basic Dynamic Load Rating: 1,945kg
- Basic Static Load Rating: 1,125kg
- Unit Weight: 1.46kg
Brand Information
This product may be supplied as either FK or Power Drive depending on stock availability. Both manufacturers produce bearing units to the same dimensional standards and quality specifications, ensuring excellent reliability, performance and value for money.
