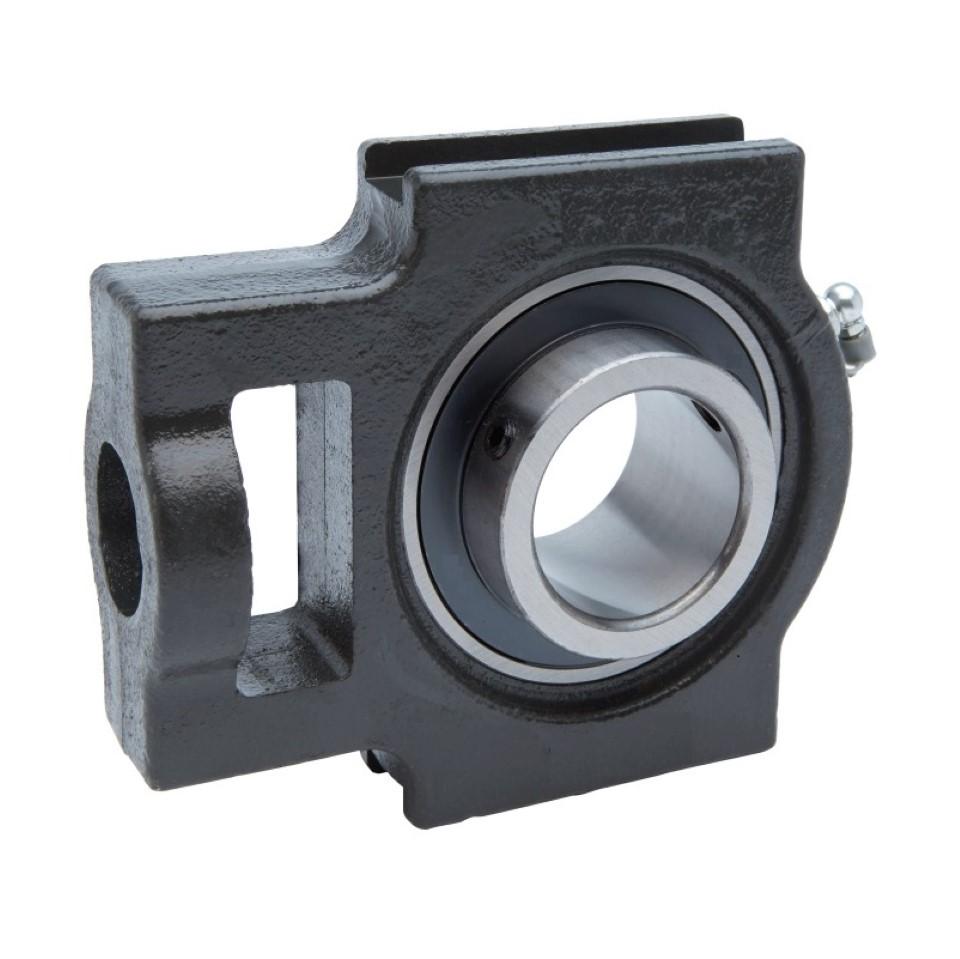

UCT Bearing Take-Up Units are self-contained bearing assemblies designed to provide adjustable shaft positioning and maintain proper belt or chain tension in conveyor and material handling systems. These units combine a mounted bearing with a sliding housing that allows for linear movement along a support frame, simplifying installation and ongoing tension adjustments. Key Features: Integrated bearing and sliding housing for easy tension adjustment Heavy-duty cast iron or pressed steel housing for durability Pre-lubricated insert bearings with set screw or eccentric locking collars Available in various sizes (typically metric and inch) Compatible with standard take-up frames (top angle or center pull)
Dimensions (mm)
d: 45
o: 24
g: 20
p: 90
q: 55
S: 34
b: 97
k: 18
e: 125
a: 138
w: 178
j: 55
l: 38
h: 110
B: 57
n: 22
Bearing No: UC309
Housing No: T309
Weight (kg) 4.0
Load Rating Dynamic: 53.0 kN
Load Rating Static: 31.8 kN
