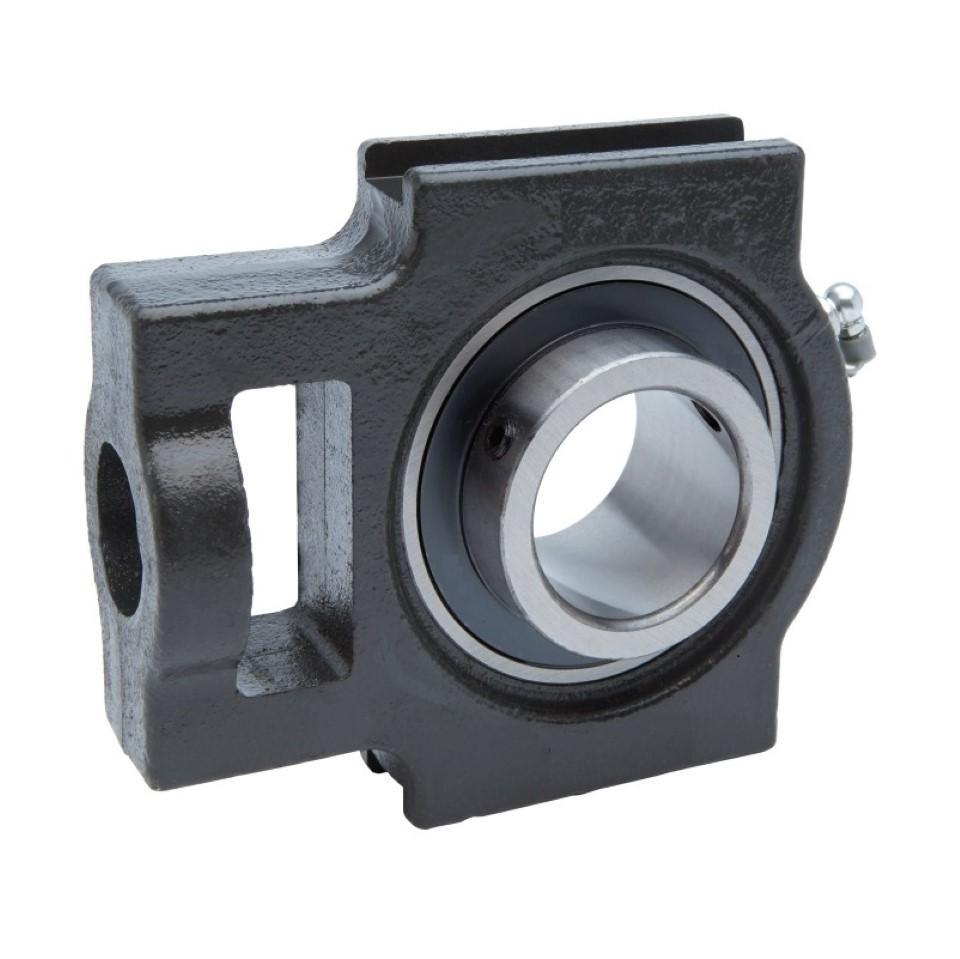

UCT Bearing Take-Up Units are self-contained bearing assemblies designed to provide adjustable shaft positioning and maintain proper belt or chain tension in conveyor and material handling systems. These units combine a mounted bearing with a sliding housing that allows for linear movement along a support frame, simplifying installation and ongoing tension adjustments. Key Features: Integrated bearing and sliding housing for easy tension adjustment Heavy-duty cast iron or pressed steel housing for durability Pre-lubricated insert bearings with set screw or eccentric locking collars Available in various sizes (typically metric and inch) Compatible with standard take-up frames (top angle or center pull)

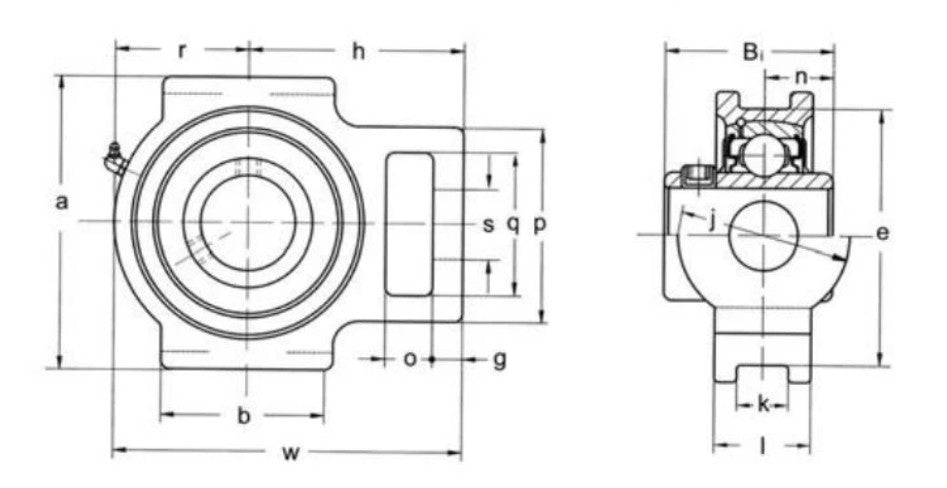

Dimensions (mm)
d: 85
o: 42
g: 32
p: 152
q: 98
S: 53
b: 170
k: 32
e: 214
a: 240
w: 298
j: 102
l: 64
h: 183
B: 96
n: 40
Bearing No: UC317
Housing No: T317
Weight (kg) 18.6
