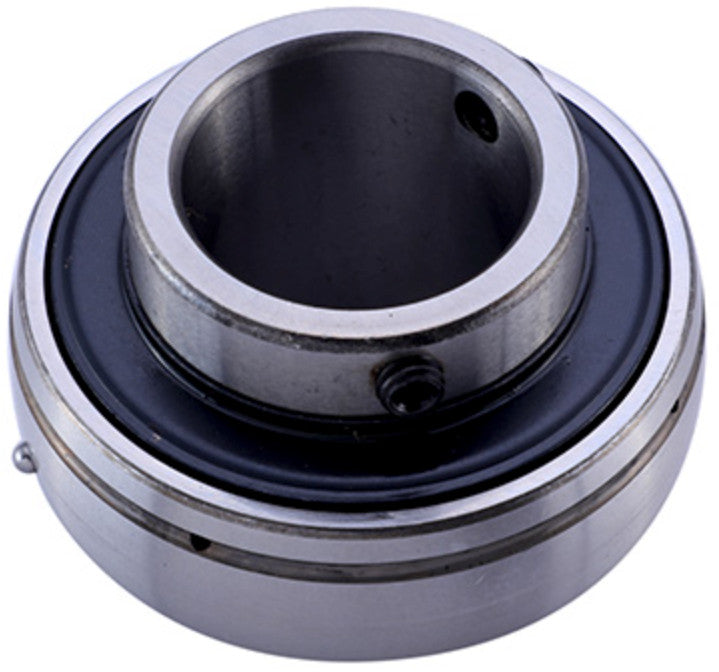

UCX18 BKL Brand Spherical Outside Bearing Insert 90mm Bore

In stock
BKL UCX18 sealed bearing insert for a 90 mm shaft, with a 170 mm spherical outside diameter, 104 mm inner ring width and grub screw locking.

$117.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Budget
  • Vendor BKL Brand
  • SKU UCX18-BUDGET
  • Inside diameter (d) 90mm
  • Outside diameter (D) 170mm
  • Width (B) 104mm
The BKL Brand UCX18 is a sealed ball bearing insert for a 90 mm shaft. Its 170 mm spherical outer ring fits a compatible housing with a spherical seat, allowing for initial misalignment during installation. Grub screws in the extended inner ring secure the bearing... Read full description ↓ Show less ↑

The BKL Brand UCX18 is a sealed ball bearing insert for a 90 mm shaft. Its 170 mm spherical outer ring fits a compatible housing with a spherical seat, allowing for initial misalignment during installation. Grub screws in the extended inner ring secure the bearing to the shaft.

This listing is for the bearing insert only. When matching a replacement, check the shaft diameter, 170 mm outside diameter and 104 mm inner ring width.

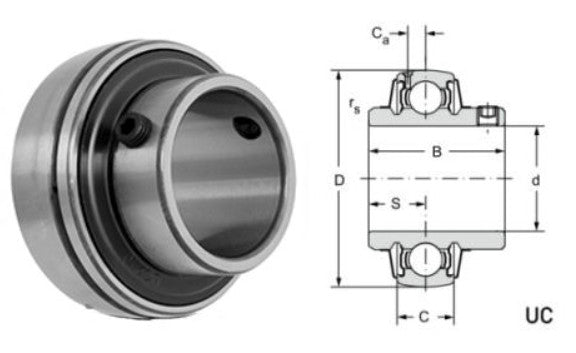

Dimensions and technical details

Product designation: UCX18
Series: UCX
Shaft diameter: 90 mm
Spherical outside diameter: 170 mm
Inner ring width: 104 mm
Outer ring width: 40 mm
Shaft locking method: Grub screws

Available from Bearing King Ltd for machinery maintenance and bearing replacement.
